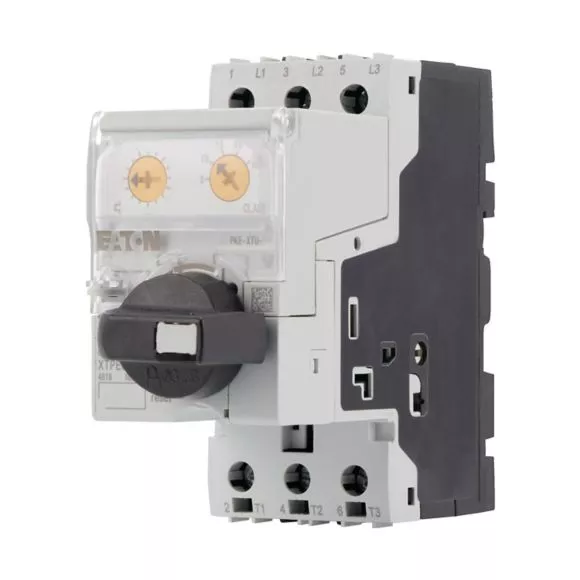

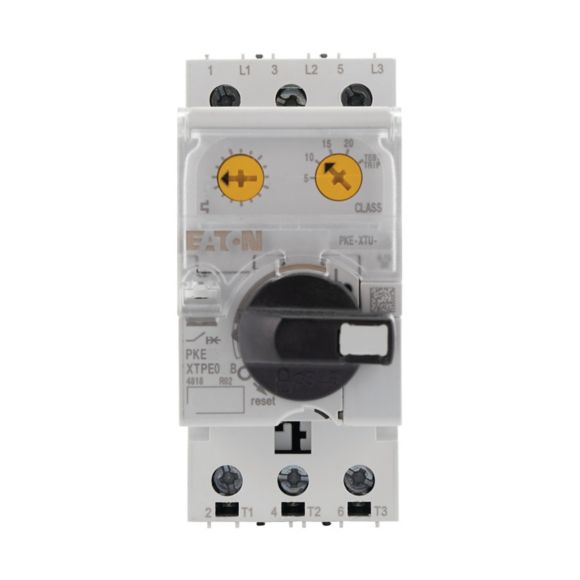

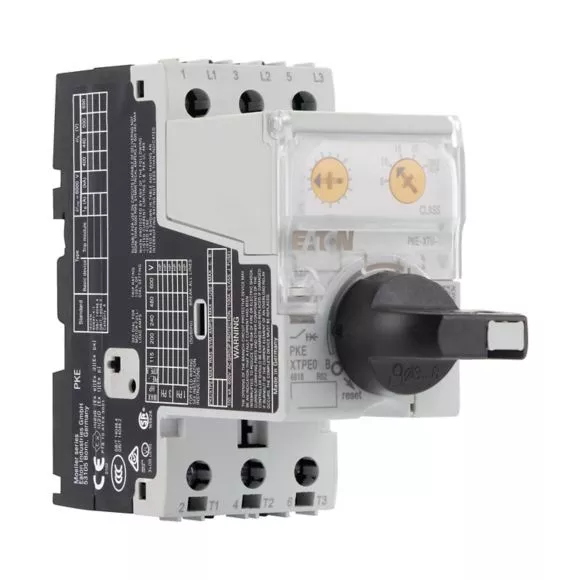

PKE32/AK Aparat podst. PKE bez wyzw. z rączką z blok.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 158245 |
| GTIN(EAN) | 4015081548330 |
| Price unit | piece |
| Catalog price | 691,75 zł (562,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Basic device motor-protective circuit-breaker, isolating function, lockable in the 0 (Off) position, can be expanded without tools with PKE-XTU... electronic control units for motor protection or system/cable protection
Additional features:
| Information | Value |
|---|---|
| Net weight: | 330 g |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 0 - 32 A |
| Adjustment range undelayed short-circuit release: | 0 - 0 A |
| With thermal overload protection: | no |
| Phase failure sensitive: | no |
| Switch off technique: | Electronic |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 32 A |
| Rated operation power at AC-3, 230 V: | 0 kW |
| Rated operation power at AC-3, 400 V: | 0 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Turn button |
| Device construction: | Built-in device fixed built-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 0 kA |
| Degree of protection (IP): | IP20 |
| Height: | 102.5 mm |
| Width: | 45 mm |
| Depth: | 101 mm |
