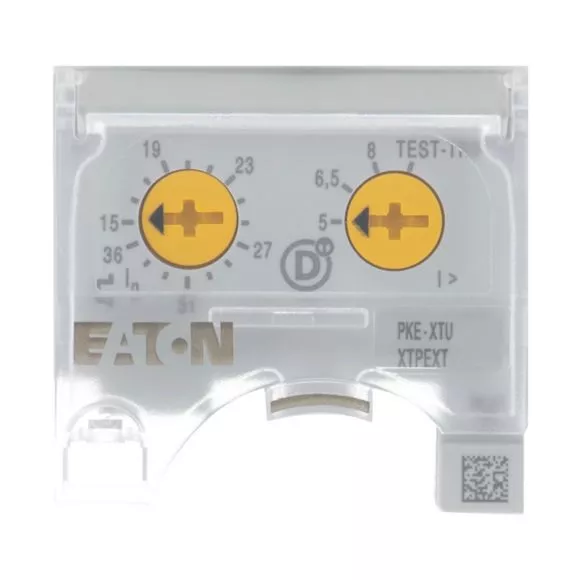

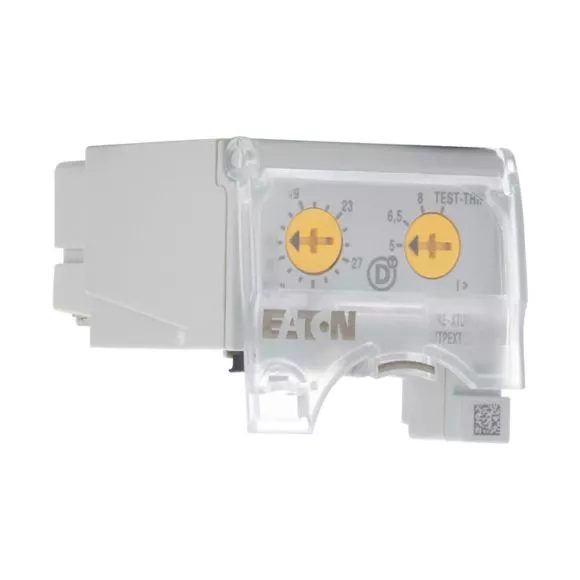

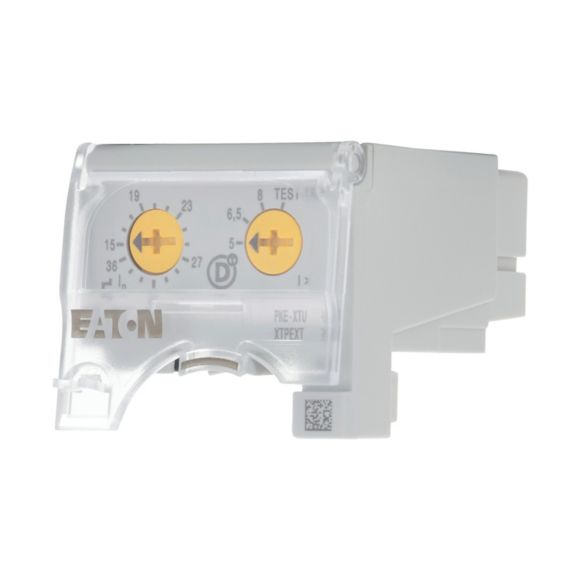

PKE-XTUCP-36 Wyzwalacz elektr. ochr. instalacji 15-36A do PKE32
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 153164 |
| GTIN(EAN) | 4015081498918 |
| Price unit | piece |
| Catalog price | 1 318,56 zł (1 072,00 zł + 23% VAT) |
| Sale price | from 335,46 zł / szt. (272,73 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Elektroniczny blok wyzwolenia do ochrony instalacji i kabli zgodnie z normą IEC60947-2 do urządzenia podstawowego PKE32, elektroniczna szerokozakresowa ochrona przeciążeniowa (2,4:1) regulowany czas opóźnienia. Beznarzędziowy montaż z urządzeniem podstawowym PKE.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 90 g |
| Country of origin | Czechy |
| ETIM class: | Trip block for power circuit-breaker |
| Width: | 45 mm |
| Height: | 64,2 mm |
| Depth: | 41,6 mm |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Rated permanent current Iu: | 36 A |
| Number of poles: | 3 |
| Short-circuit release function: | Delayed |
| Overload release current setting: | 15 - 36 A |
| Voltage type (supply voltage): | AC |
| External power supply required: | no |
| Number of auxiliary contacts as change-over contact: | 0 |
| Voltage type (operating voltage): | AC |
| With ground fault protection function: | no |
| Rated switch current: | 36 A |
| Supply voltage AC 50 Hz: | 690 - 690 V |
| Supply voltage AC 60 Hz: | 690 - 690 V |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Operating voltage DC: | 690 - 690 V |
| Type of motor protection: | Electronic release |
