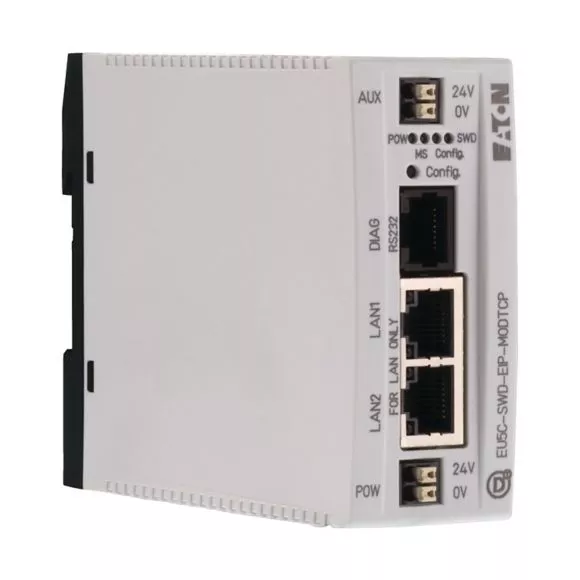

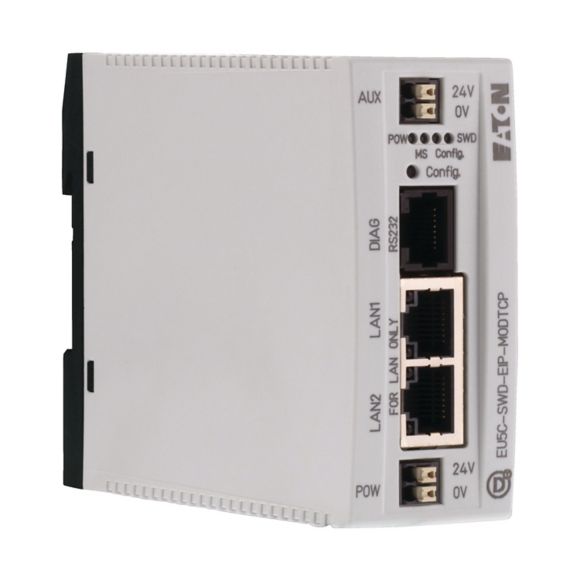

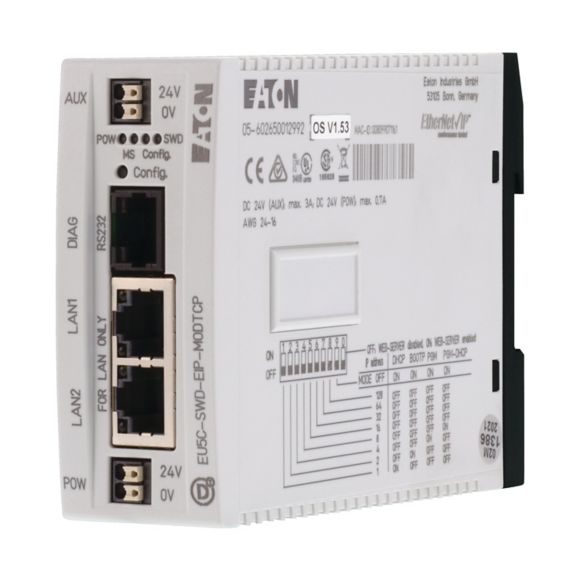

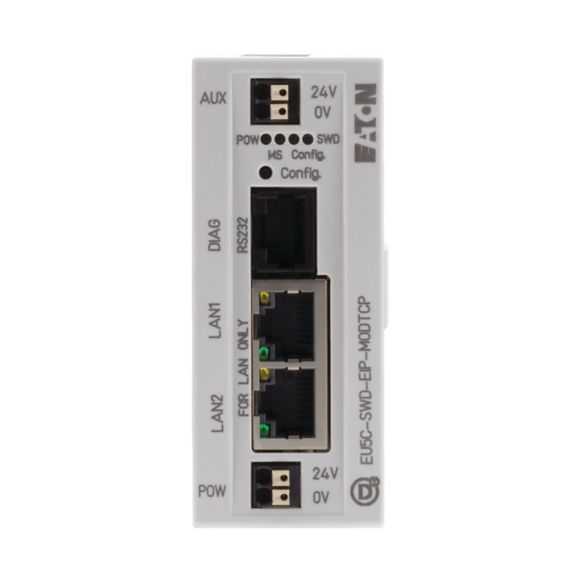

EU5C-SWD-EIP-MODTCP Gateway SmartWire-DT do sieci Ethernet IP / MODBUS TCP
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 153163 |
| GTIN(EAN) | 4015081498901 |
| Price unit | piece |
| Catalog price | 4 260,72 zł (3 464,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Gateway SmartWire-DT do podłączania do sieci przemysłowej i do zasilania urządzeń SmartWire-DT i aparatów łączeniowych. Podłączenie do Ethernet IP lub MODBUS-TCP odbywa się przez wbudowany przełącznik Ethernet Swtch(10/100MBit) jako Slave. Adresowanie odbywa się przez przełącznik DIP lub DHCP. Można podłączyć do 99 urządzeń SmartWire-DT. Gateway posiada oddzielny interfejs diagnostyczny.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 162 g |
| ETIM class: | Fieldbus, decentr. periphery - communication module |
| Supply voltage AC 50 Hz: | 0 - 0 V |
| Supply voltage AC 60 Hz: | 0 - 0 V |
| Supply voltage DC: | 20.4 - 28.8 V |
| Voltage type (supply voltage): | DC |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | no |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard GPRS: | no |
| Radio standard eGPRS: | no |
| Radio standard GSM: | no |
| Radio standard LTE: | no |
| Radio standard UMTS: | no |
| IO link master: | no |
| System accessory: | yes |
| Degree of protection (IP): | IP20 |
| With potential separation: | no |
| Fieldbus connection over separate bus coupler possible: | no |
| Rail mounting possible: | yes |
| Wall mounting/direct mounting: | yes |
| Front built-in possible: | no |
| Rack-assembly possible: | no |
| Suitable for safety functions: | yes |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Appendant operation agent (Ex ia): | no |
| Appendant operation agent (Ex ib): | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Width: | 35 mm |
| Height: | 90 mm |
| Depth: | 127 mm |
