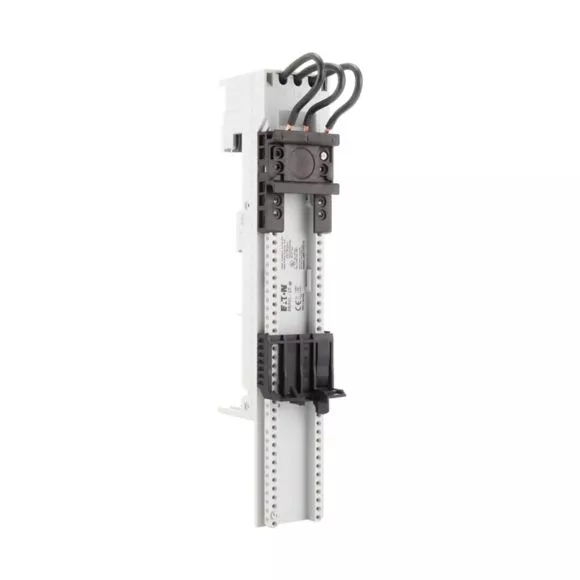

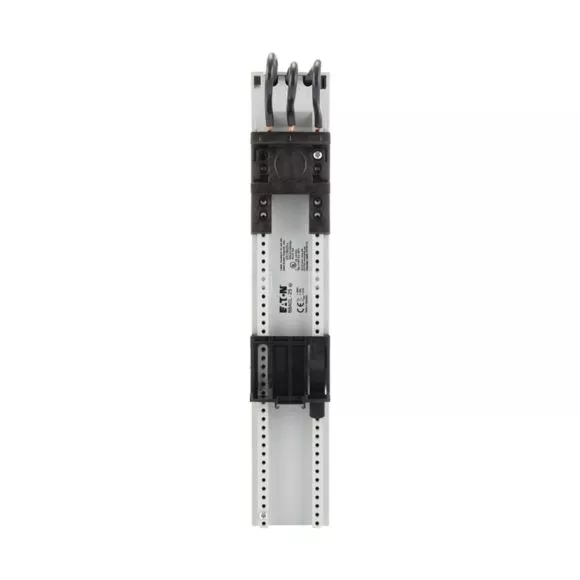

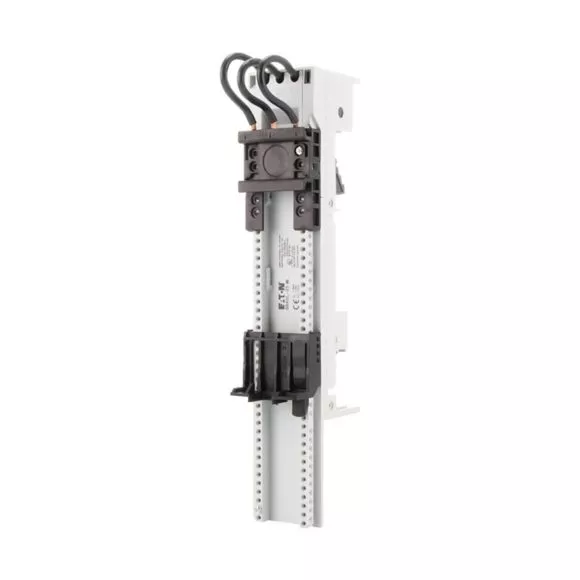

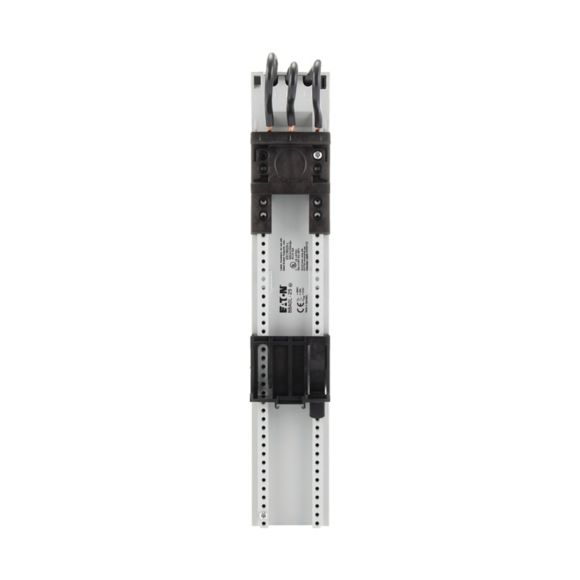

BBA0L-25 Adapter szyn montażowych dla PKZM0, PKE + DS7
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 142526 |
| GTIN(EAN) | 4015081392551 |
| Price unit | piece |
| Catalog price | 500,00 zł (406,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
45mm adapter na szyny zbiorcze do 60mm systemu szyny zbiorczej, szyna montażowa, trzy odpowiednio dobrane przewody (AWG12 / 4mm²) umożliwiające podłączenie do aparatu łączeniowego, zastosowanie do zapłonników bezpośrednich z wyłącznikiem ochronnym silnika PKZM0 / PKE i softstarterami DS7…004N do DS7...012N, znamionowy prąd pracy: 25A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 284 g |
| ETIM class: | Busbar adapter |
| Mounting rail armament: | 1 mounting rail |
| Type of electric connection: | 3 conductors AWG 12 |
| Rated current In: | 25 A |
| Min. busbar thickness: | 5 mm |
| Max. busbar thickness: | 10 mm |
| Width of the adapter: | 45 mm |
| Rail width: | 20 mm |
| Busbar distance: | 60 mm |
