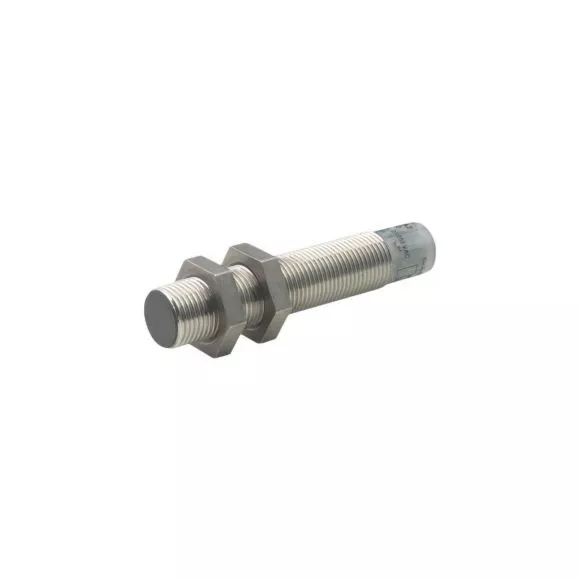

E57LAL12A2SA Czujnik indukcyjny, zasilanie AC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 135998 |
| GTIN(EAN) | 4015081327911 |
| Price unit | piece |
| Catalog price | 1 131,97 zł (920,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
E57-Premium-Plus seria, cechy produktu: Nowa, obszerna oferta produktów - Modele z przyłączem dwuprzewodowym, trzyprzewodowym, przyłączem AC, DC i AC/DC. Odporność na obciążenia mechaniczne i warunki środowiskowe. Obudowa ze stali nierdzewnej i nowa masa odlewana - solidna, odporność na temperatury, odporność na strumień wody, odporność na uderzenia i drgania. Wysoka odporność na zakłócenia, lampka stanu wyjścia jest widoczna przez 360° z każdego kierunku, we wszystkich warunkach oświetlenia. Cofana ochrona przed zwarciami i błędnym połączeniem biegunów w modelach AC/DC i DC. Duży zakres temperatur (od -25 do 70 °C). Wersje z kablem do podłączenia na stałe lub złączem wtykowym M12 do szybkiego montażu i łatwej wymiany
Additional features:
| Information | Value |
|---|---|
| Net weight: | 50 g |
| ETIM class: | Inductive proximity switch |
| Width sensor: | 0 mm |
| Height of sensor: | 0 mm |
| Length of sensor: | 68 mm |
| Diameter sensor: | 12 mm |
| Mechanical mounting condition for sensor: | Concise |
| Switching distance: | 2 mm |
| Suitable for safety functions: | no |
| Type of switch function: | Normally open contact |
| Type of switching output: | 2-wire |
| Type of electric connection: | Plug-in connection |
| Number of semiconductor outputs with signalling function: | 1 |
| Number of contact energized outputs with signalling function: | 0 |
| Number of protected semiconductor outputs: | 0 |
| Number of protected contact energized outputs: | 0 |
| Type of actuation: | Metallic Target |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cylinder, screw-thread |
| Coating housing: | Other |
| Cascadable: | no |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Max. output current at protected output: | 0 mA |
| Supply voltage: | 20 - 250 V |
| Rated control supply voltage AC 50 Hz: | 20 - 250 V |
| Rated control supply voltage AC 60 Hz: | 20 - 250 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type: | AC |
| Switching frequency: | 20 Hz |
| With monitoring function downstream switching devices: | no |
| Housing material: | Metal |
| Compression-resistant: | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Degree of protection (NEMA): | 4X, 6, 13 |
