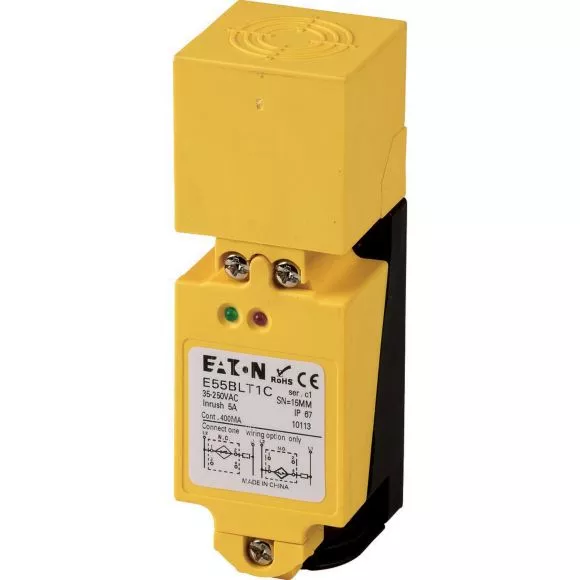

E55BLT1C Czujnik indukcyjny, zasilanie AC
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 135812 |
GTIN(EAN) | 4015081326051 |
Price unit | piece |
Catalog price | 1 418,19 zł (1 153,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
E55 Serie, indukcyjny łącznik zbliżeniowy, cechy produktu: Konstrukcja Quader niemetalowa obudowa zapewnia doskonałą odporność na korozję. Ten sam współczynnik kształtu i ten sam kształt co standardowy przycisk graniczny do łatwego dołączania. Głowica czujnika ma pięć punktów czujnikowych (rejestrowanie od góry lub ze wszystkich czterech stron), które można łatwo zmieniać na miejscu. Duży zasięg wykrywania do 40 mm.
Additional features:
Information | Value |
---|---|
Net weight: | 290 g |
ETIM class: | Inductive proximity switch |
Width sensor: | 40 mm |
Height of sensor: | 40 mm |
Length of sensor: | 118 mm |
Diameter sensor: | 0 mm |
Mechanical mounting condition for sensor: | Concise |
Switching distance: | 15 mm |
Suitable for safety functions: | no |
Type of switch function: | Programmable/configurable |
Type of switching output: | 2-wire |
Type of electric connection: | Clamp |
Number of semiconductor outputs with signalling function: | 1 |
Number of contact energized outputs with signalling function: | 0 |
Number of protected semiconductor outputs: | 0 |
Number of protected contact energized outputs: | 0 |
Type of actuation: | Metallic Target |
Type of interface: | None |
Type of interface for safety communication: | None |
Construction type housing: | Cuboid |
Coating housing: | Other |
Cascadable: | no |
SIL according to IEC 61508: | None |
Performance level according to EN ISO 13849-1: | None |
Max. output current at protected output: | 0 mA |
Supply voltage: | 35 - 250 V |
Rated control supply voltage AC 50 Hz: | 35 - 250 V |
Rated control supply voltage AC 60 Hz: | 35 - 250 V |
Rated control supply voltage DC: | 0 - 0 V |
Voltage type: | AC |
Switching frequency: | 25 Hz |
With monitoring function downstream switching devices: | no |
Housing material: | Plastic |
Compression-resistant: | no |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Degree of protection (NEMA): | 4X, 6, 13 |
