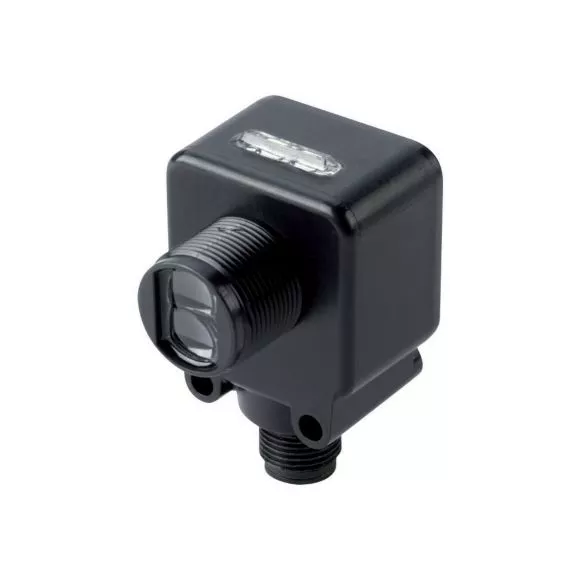

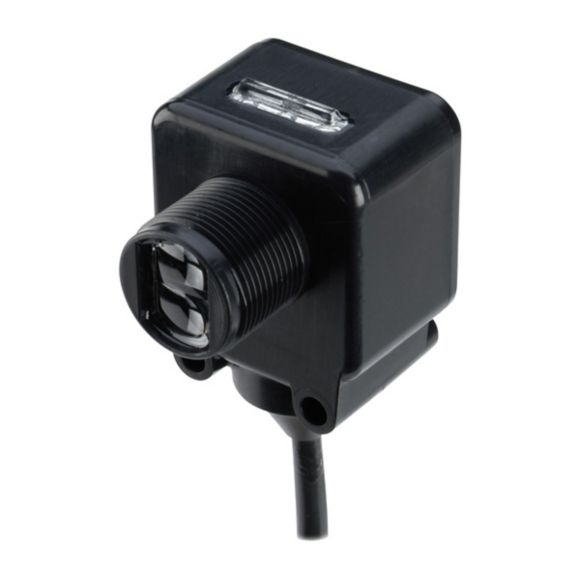

E65-SMPR3-HLD Czujnik optyczny, zasilanie DC
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 135721 |
GTIN(EAN) | 4015081325146 |
Price unit | piece |
Catalog price | 1 091,01 zł (887,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
E65-SM Seria, cechy produktu: Dobrze widoczne wskazania napięcia, wyjścia i TargetLock™, targetLock™ ułatwia konfigurację i zapewnia optymalną niezawodność pracy. Modele Perfect Prox® z jednakowej odległości wykrywają docelowe obiekty o rożnych kolorach i pomijają obiekty w tle. Modele DC zostały wyposażone w wyjścia PNP i NPN. Widoczne strumienie pomiarowe we wszystkich modelach ułatwiają montaż i ustawienie fotokomórek. Zwarta konstrukcja pozwalająca na montaż na niewielkiej przestrzeni. Różne opcje montażu włącznie ze standardowym gwintem 18 mm. Ochrona przed zwarciem, przeciążeniem i zamianą biegunów. Czujniki odbiciowe są oferowane w wersjach jednodrożnych, polaryzacyjnych odbiciowych, dyfuzyjnych odbiciowych i z ukryciem tła Perfect Prox®.
Additional features:
Information | Value |
---|---|
Net weight: | 110 g |
ETIM class: | Retroreflective photoelectric sensor |
Pre failure notice: | no |
With time function: | no |
Rated switching distance: | 3000 mm |
Max. switching distance: | 0 mm |
Max. output current: | 100 mA |
With reflector: | no |
Analogue output 0 V ... 10 V: | no |
Analogue output 0 mA ... 20 mA: | no |
Analogue output 4 mA ... 20 mA: | no |
Analogue output -10 V ... +10 V: | no |
With other analogue output: | no |
Setting procedure: | Other |
With communication interface analogue: | no |
With communication interface AS-Interface: | no |
With communication interface CANOpen: | no |
With communication interface DeviceNet: | no |
With communication interface Ethernet: | no |
With communication interface INTERBUS: | no |
With communication interface PROFIBUS: | no |
With communication interface RS-232: | no |
With communication interface RS-422: | no |
With communication interface RS-485: | no |
With communication interface SSD: | no |
With communication interface SSI: | no |
Number of semiconductor outputs with signalling function: | 2 |
Number of contact energized outputs with signalling function: | 0 |
Number of protected semiconductor outputs: | 0 |
Number of protected contact energized outputs: | 0 |
Type of interface for safety communication: | Other |
Type of electric connection: | Connector M12 |
Type of switching output: | PNP |
Type of switch function: | Other |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Construction type housing: | Cuboid |
Width sensor: | 33 mm |
Diameter sensor: | 0 mm |
Height of sensor: | 55 mm |
Length of sensor: | 41 mm |
Sensing mode: | Light switching |
Material of optical surface: | Plastic |
Housing material: | Plastic |
Max. output current at protected output: | 0 mA |
Min. reflector distance: | 0 mm |
Ambient temperature: | -25 - 55 °C |
Response time: | 1 ms |
Transmission range of the safety field: | 0 m |
Switching frequency: | 500 Hz |
Type of safety according to IEC 61496-1: | 1 |
Switching voltage of OSSD at state "high": | 30 V |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 10 - 30 V |
Voltage type: | DC |
With monitoring function downstream switching devices: | no |
Laser protection class: | None |
Wavelength of the sensor: | 660 nm |
Type of light: | Other |
Light dot: | 0 mm² |
With restart blockage: | no |
Suitable for safety functions: | no |
Degree of protection (IP): | IP68 |
Degree of protection (NEMA): | 6P, 13 |
