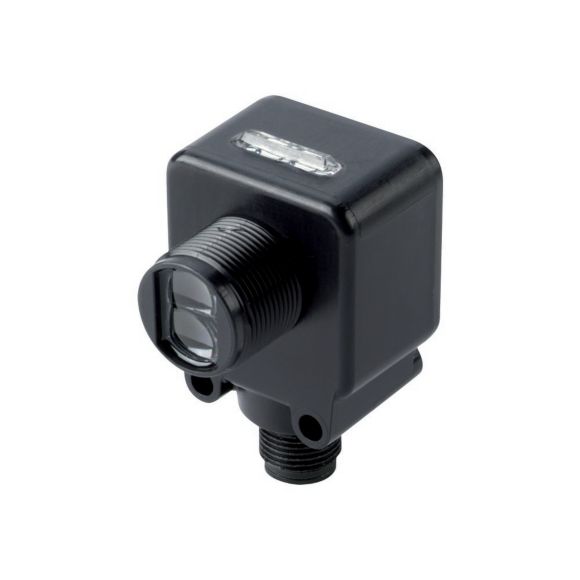

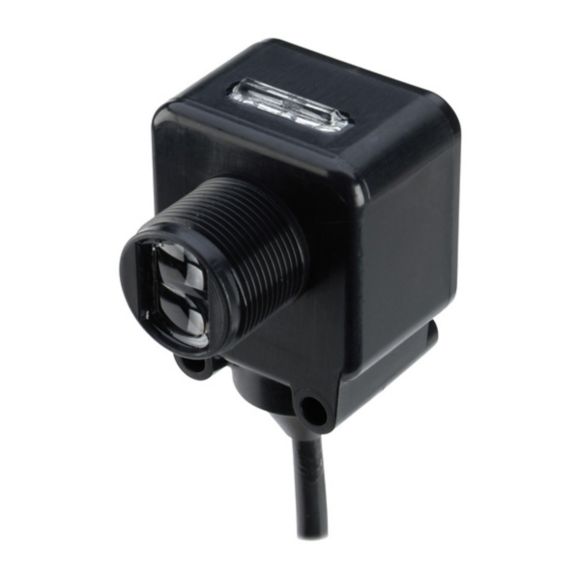

E65-SMPR3-HDD Czujnik optyczny, zasilanie DC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 135719 |
| GTIN(EAN) | 4015081325122 |
| Price unit | piece |
| Catalog price | 1 186,95 zł (965,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
E65-SM Seria, cechy produktu: Dobrze widoczne wskazania napięcia, wyjścia i TargetLock™, targetLock™ ułatwia konfigurację i zapewnia optymalną niezawodność pracy. Modele Perfect Prox® z jednakowej odległości wykrywają docelowe obiekty o rożnych kolorach i pomijają obiekty w tle. Modele DC zostały wyposażone w wyjścia PNP i NPN. Widoczne strumienie pomiarowe we wszystkich modelach ułatwiają montaż i ustawienie fotokomórek. Zwarta konstrukcja pozwalająca na montaż na niewielkiej przestrzeni. Różne opcje montażu włącznie ze standardowym gwintem 18 mm. Ochrona przed zwarciem, przeciążeniem i zamianą biegunów. Czujniki odbiciowe są oferowane w wersjach jednodrożnych, polaryzacyjnych odbiciowych, dyfuzyjnych odbiciowych i z ukryciem tła Perfect Prox®.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 110 g |
| Country of origin | Meksyk |
| ETIM class: | Retroreflective photoelectric sensor |
| Pre failure notice: | no |
| With time function: | no |
| Rated switching distance: | 3 000 mm |
| Max. switching distance: | 0 mm |
| Max. output current: | 100 mA |
| With reflector: | no |
| Analogue output 0 V ... 10 V: | no |
| Analogue output 0 mA ... 20 mA: | no |
| Analogue output 4 mA ... 20 mA: | no |
| Analogue output -10 V ... +10 V: | no |
| With other analogue output: | no |
| Setting procedure: | Other |
| With communication interface analogue: | no |
| With communication interface AS-Interface: | no |
| With communication interface CANOpen: | no |
| With communication interface DeviceNet: | no |
| With communication interface Ethernet: | no |
| With communication interface INTERBUS: | no |
| With communication interface PROFIBUS: | no |
| With communication interface RS-232: | no |
| With communication interface RS-422: | no |
| With communication interface RS-485: | no |
| With communication interface SSD: | no |
| With communication interface SSI: | no |
| Number of semiconductor outputs with signalling function: | 2 |
| Number of contact energized outputs with signalling function: | 0 |
| Number of protected semiconductor outputs: | 0 |
| Number of protected contact energized outputs: | 0 |
| Type of interface for safety communication: | Other |
| Type of electric connection: | Connector M12 |
| Type of switching output: | PNP |
| Type of switch function: | Other |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Construction type housing: | Cuboid |
| Width sensor: | 33 mm |
| Diameter sensor: | 0 mm |
| Height of sensor: | 55 mm |
| Length of sensor: | 41 mm |
| Sensing mode: | Dark switching |
| Material of optical surface: | Plastic |
| Housing material: | Plastic |
| Max. output current at protected output: | 0 mA |
| Min. reflector distance: | 0 mm |
| Ambient temperature: | -25 - 55 °C |
| Response time: | 1 ms |
| Transmission range of the safety field: | 0 m |
| Switching frequency: | 500 Hz |
| Type of safety according to IEC 61496-1: | 1 |
| Switching voltage of OSSD at state "high": | 30 V |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 10 - 30 V |
| Voltage type: | DC |
| With monitoring function downstream switching devices: | no |
| Laser protection class: | None |
| Wavelength of the sensor: | 660 nm |
| Type of light: | Other |
| Light dot: | 0 mm² |
| With restart blockage: | no |
| Suitable for safety functions: | no |
| Degree of protection (IP): | IP68 |
| Degree of protection (NEMA): | 6P, 13 |
