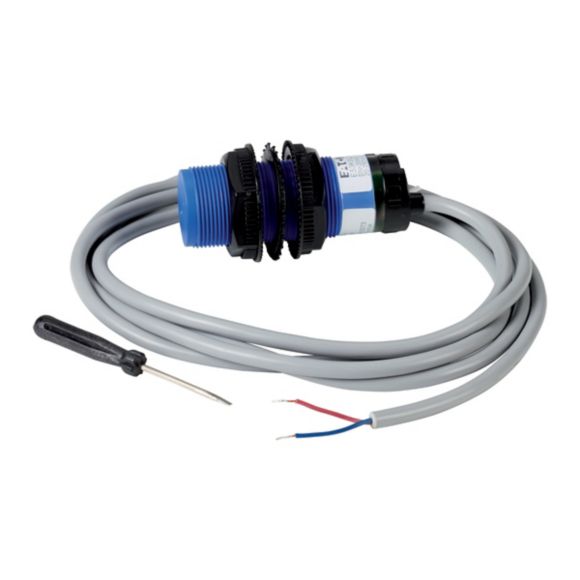

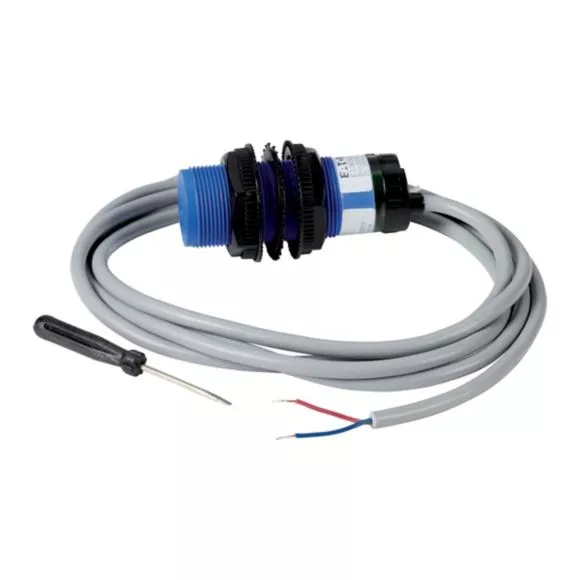

E53KBL30A2E Czujnik pojemnościowy, zasilanie AC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 134804 |
| GTIN(EAN) | 4015081316564 |
| Price unit | piece |
| Catalog price | 1 354,23 zł (1 101,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
E53 Serie, pojemnościowy czujnik zbliżeniowy, cechy wyrobów: IP67, diodowy wskaźnik stanu wykrywanie metalowych i metalowych przedmiotów, cieczy, materiałów sypkich i innych substancji, które są trudno wykrywalne przez inne typy czujników. Odporna na korozję plastikowa obudowa. Regulowana czułość.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 230 g |
| ETIM class: | Capacitive proximity switch |
| Voltage type: | AC |
| Cascadable: | no |
| Housing material: | Plastic |
| Suitable for safety functions: | no |
| Coating housing: | Other |
| With status indication: | yes |
| Switching frequency: | 15 Hz |
| Switching distance: | 25 mm |
| Number of semiconductor outputs with signalling function: | 1 |
| Number of contact energized outputs with signalling function: | 0 |
| Number of protected semiconductor outputs: | 0 |
| Number of protected contact energized outputs: | 0 |
| Type of interface for safety communication: | None |
| Type of electric connection: | Cable |
| Type of switching output: | 2-wire |
| Type of switch function: | Breaker contact |
| Rated control supply voltage AC 50 Hz: | 20 - 250 V |
| Rated control supply voltage AC 60 Hz: | 20 - 250 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Construction type housing: | Cylinder, screw-thread |
| Max. output current at protected output: | 0 mA |
| Mechanical mounting condition for sensor: | Not flat |
| With monitoring function downstream switching devices: | no |
| Supply voltage: | 20 - 250 V |
| Type of actuation: | Other |
| Type of interface: | None |
| Width sensor: | 0 mm |
| Compression-resistant: | no |
| Diameter sensor: | 30 mm |
| Height of sensor: | 0 mm |
| Length of sensor: | 80 mm |
| Performance level according to EN ISO 13849-1: | None |
| SIL according to IEC 61508: | None |
