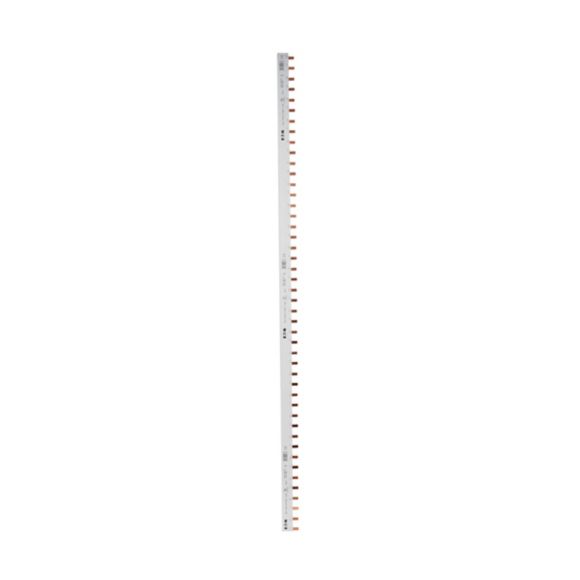

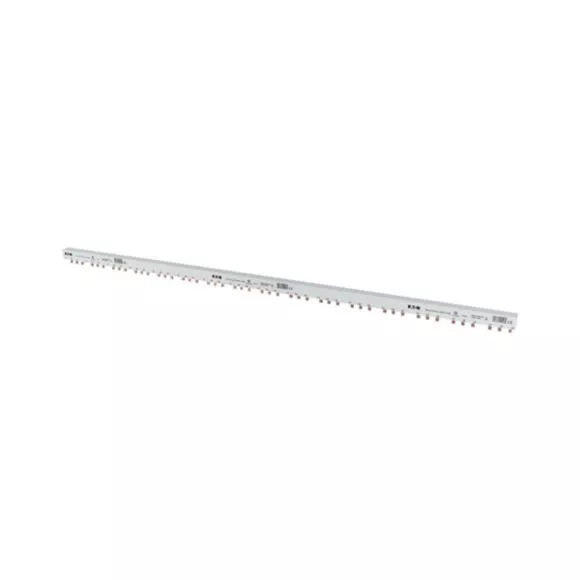

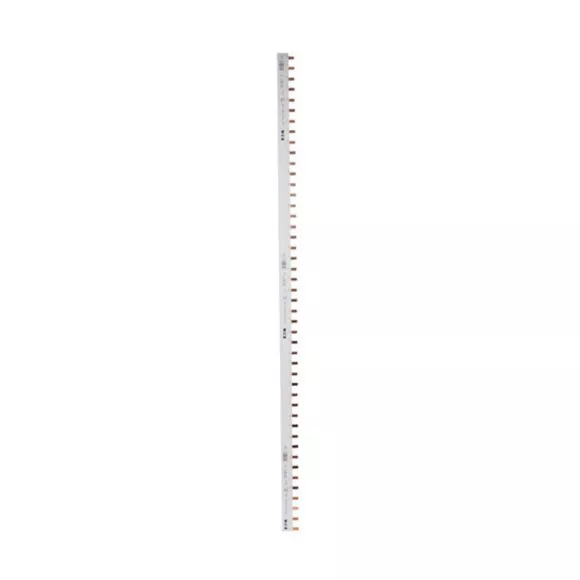

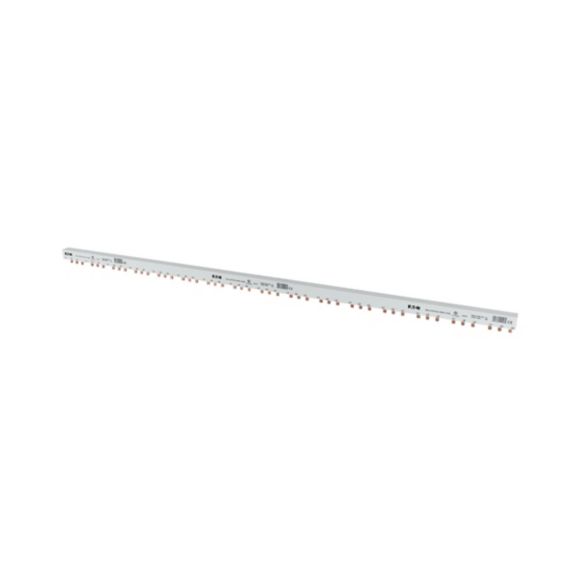

BB-UL-25/2P+AS-2,5M/46 Szyna łączeniowa 2-faz. dł. 1m
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 121995 |
| GTIN(EAN) | 4015081201952 |
| Price unit | piece |
| Catalog price | 644,89 zł (524,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 727 g |
| ETIM class: | Phase busbar |
| Number of phases: | 2 |
| Number of poles: | 46 |
| Suitable for number of devices: | 46 |
| Module width: | 0 mm |
| Cross section: | 25 mm² |
| Length: | 1009 mm |
| Width in number of modular spacings: | 46 |
| Rated permanent current Iu: | 100 A |
| Type of electric connection: | Pin |
| Insulated: | yes |
| Rated surge voltage: | 10 kV |
| Conditioned rated short-circuit current Iq: | 10 kA |
| Max. rated operation voltage Ue: | 277 V |
| Rated short-time withstand current lcw: | 0 kA |
| Suitable for devices with N-conductor: | no |
| Suitable for devices with auxiliary switch: | no |
| Colour: | Other |
