BPZ-BR/SASY/MSW/H-5/1000 Most szynowy, 5 biegunów
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 120717 |
| GTIN(EAN) | 4015081185474 |
| Price unit | piece |
| Catalog price | 6 336,96 zł (5 152,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

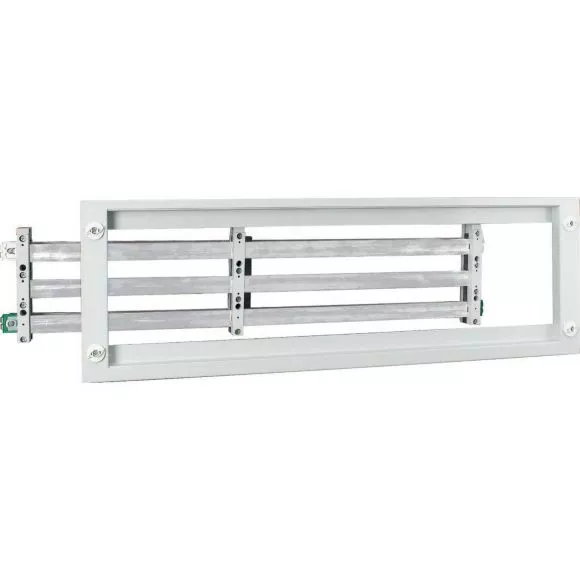

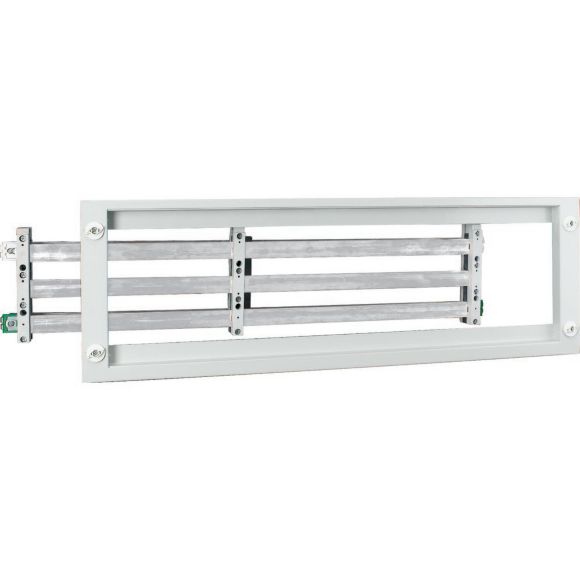

Mounting kit for 630-A SASY60i IEC busbar supports, BPZ-BR/SASY/MSW/H-, for MSW assembly configurations, height 450mm, width 1000 mm, 5 pole design - 2 front plates (300 mm and 150 mm), kit includes supports, copper, front plate
Additional features:
| Information | Value |
|---|---|
| Net weight: | 4,2 kg |
| ETIM class: | Distributor assembly busbars |
| Height: | 455 mm |
| Width: | 925 mm |
| Depth: | 50 mm |
| With cover: | yes |
| Number of poles: | 5 |
| Busbar distance: | 60 mm |
| Busbar height: | 30 mm |
| Busbar thickness: | 5 mm |
| Max. rated current: | 400 A |
| Short-circuit breaking capacity (Icw): | 0 kA |
| Busbar position: | Centre central |
