BPZ-BR/SASY/MSW/H-3/800 Most szynowy, 3 bieguny
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 120706 |
GTIN(EAN) | 4015081185368 |
Price unit | piece |
Catalog price | 2 656,80 zł (2 160,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

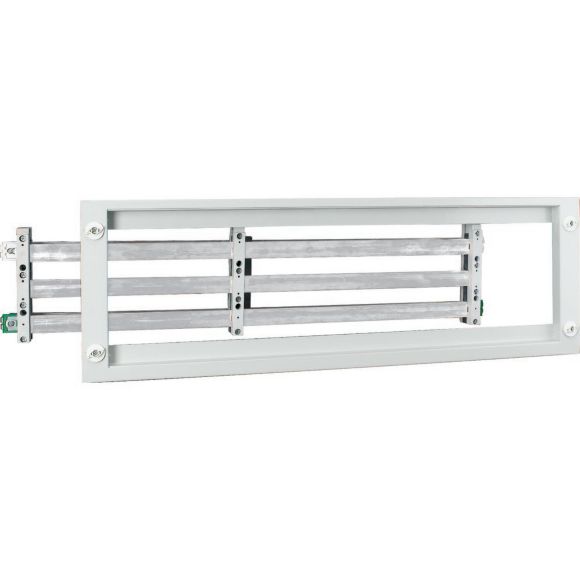

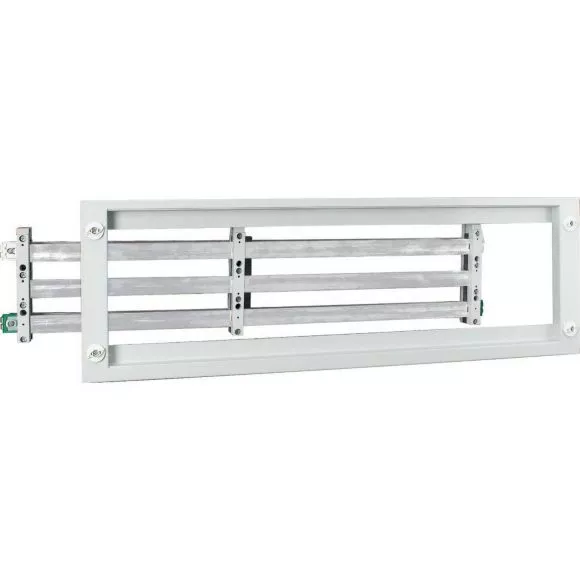

Mounting kit for 630-A SASY60i IEC busbar supports, BPZ-BR/SASY/MSW/H-, for MSW assembly configurations, height 300mm, width 800 mm, 3 pole design - 1 front plate, kit includes supports, copper, front plate
Additional features:
Information | Value |
---|---|
Net weight: | 2,2 kg |
ETIM class: | Distributor assembly busbars |
Height: | 305 mm |
Width: | 725 mm |
Depth: | 50 mm |
With cover: | yes |
Number of poles: | 3 |
Busbar distance: | 60 mm |
Busbar height: | 30 mm |
Busbar thickness: | 5 mm |
Max. rated current: | 400 A |
Short-circuit breaking capacity (Icw): | 0 kA |
Busbar position: | Centre central |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-15 00:03:32 |
Files to download: | |
External links: |
