BPZ-BR/SASY/MSW/H-2/400 Most szynowy, 2 bieguny
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 120699 |
GTIN(EAN) | 4015081185290 |
Price unit | piece |
Catalog price | 1 318,56 zł (1 072,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

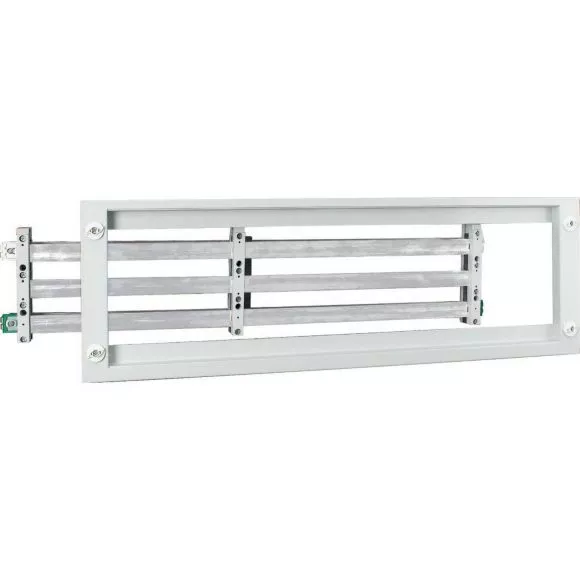

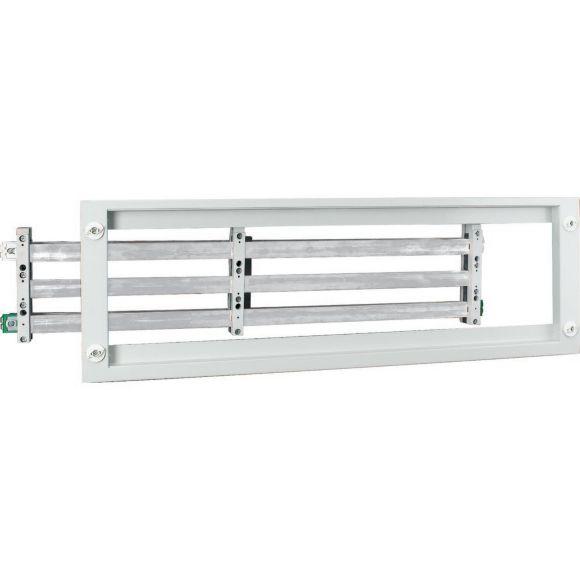

Mounting kit for 630-A SASY60i IEC busbar supports, BPZ-BR/SASY/MSW/H-, for MSW assembly configurations, height 200mm, width 400 mm, 2 pole design - 1 front plate, kit includes supports, copper, front plate
Additional features:
Information | Value |
---|---|
Net weight: | 900 g |
ETIM class: | Distributor assembly busbars |
Height: | 205 mm |
Width: | 325 mm |
Depth: | 50 mm |
With cover: | yes |
Number of poles: | 2 |
Busbar distance: | 60 mm |
Busbar height: | 30 mm |
Busbar thickness: | 5 mm |
Max. rated current: | 400 A |
Short-circuit breaking capacity (Icw): | 0 kA |
Busbar position: | Centre central |
