XVTL-BF-8/4/20 Rozdzielnica IP40, wyposażenie niepełne

• buy at the outlet / on sale
• Buy online
• Buy / order

Information	Value
Supplier	EATON Electric Sp. z o.o. (MOELLER)
Symbol	114426
GTIN(EAN)	4015081138265
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock

Description:

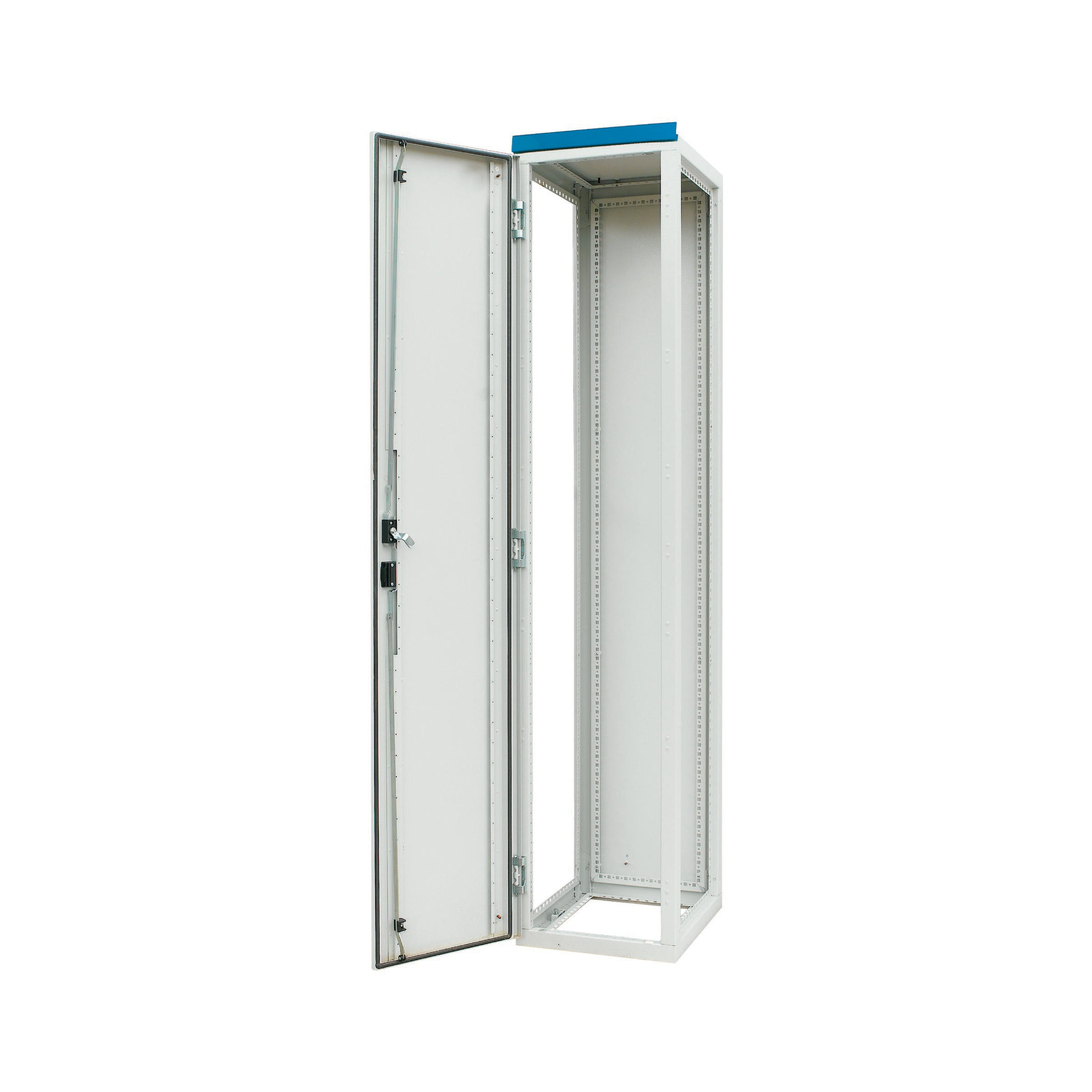

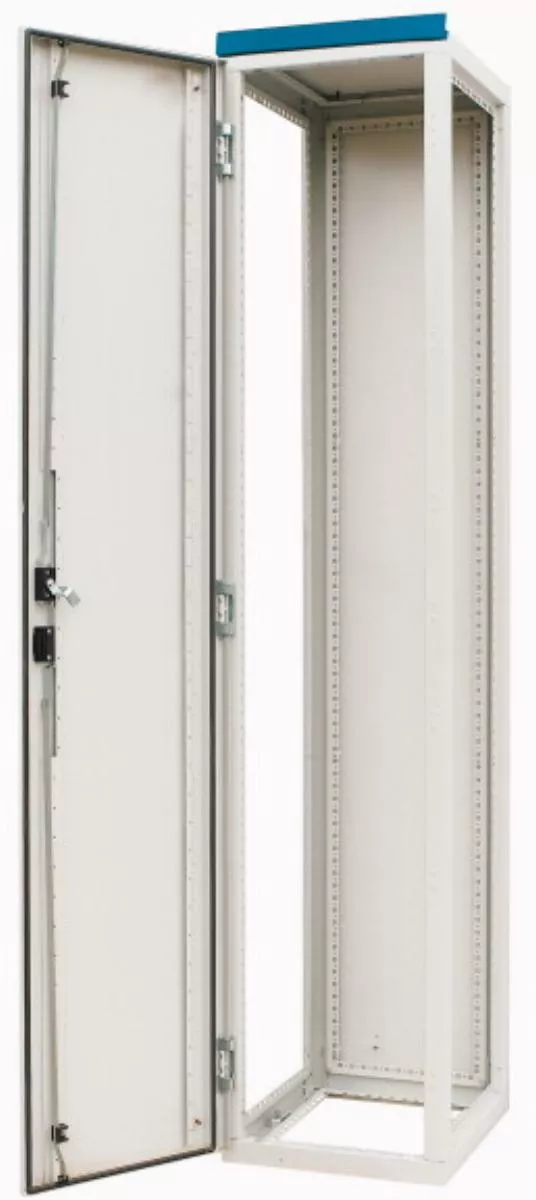

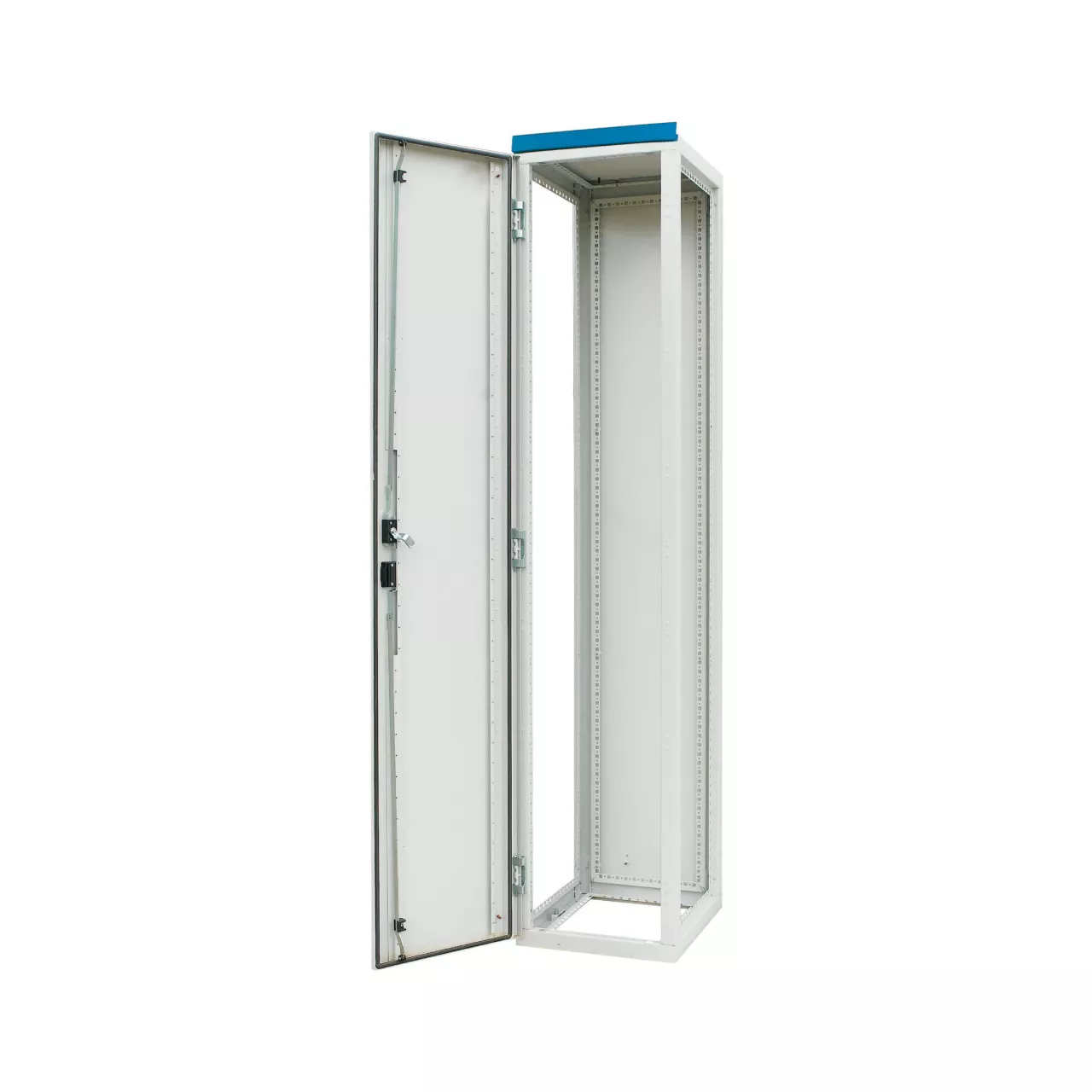

Frame with 2x depth mounting, rear panel, door, roof closed

Additional features:

Information	Value
Net weight:	82 kg
ETIM class:	Enclosure/cabinet (empty)
Colour:	Grey
Width:	800 mm
Height:	2000 mm
Depth:	400 mm
RAL-number:	7035
With mounting plate:	yes
Number of doors:	1
Number of locks:	1
Suitable for wall mounting:	yes
EMC-version:	yes
With glazed door:	no
Couplable:	yes
Material quality:	Other
Material:	Steel
Impact strength:	IK10
Degree of protection (IP):	IP40
Suitable for outdoor set-up:	no
Suitable for metrical mounting:	yes
Mounting plate depth-adjustable:	yes
With ventilation door:	no
Surface finishing:	Powder coating
With rear door:	no
Suitable for wall built-in:	no
Pitched roof:	no
Pole fastening:	no
Degree of protection (NEMA):	4X
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890:	429.996 W
Max. permissible load of the enclosure according to IEC 62208:	5000 N
Max. permissible load of the door(s) according to IEC 62208:	1000 N
Max. permissible load of the mounting plate according to IEC 62208:	4000 N
Floor standing wall model:	yes
Freestanding:	no
Corner model:	no
Intermediate mounting:	no

Additional information:

Information	Value
Updated:	2024-04-12 11:58:21
Files to download:	WA-VT28513_LDO.jpg (33,19 KB) (Obraz poglądowy, ) WA-VT28513_LDO.jpg (186,9 KB) (Obraz poglądowy, )
External links:	Głęboki link do str. produktu
