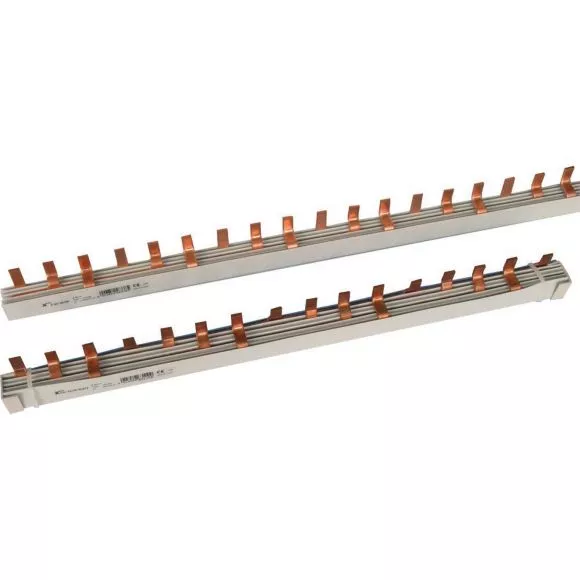

Z-SV-35/1P Szyna zasilająca 1-fazowa
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 113135 |
GTIN(EAN) | 4015081126712 |
Price unit | piece |
Catalog price | 359,16 zł (292,00 zł + 23% VAT) |
Sale price | from 118,52 zł (96,36 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Oszynowanie bloku, prąd znamionowy 110A, 35mm², 1-fazowa
Additional features:
Information | Value |
---|---|
Net weight: | 436 g |
ETIM class: | Phase busbar |
Number of phases: | 1 |
Number of poles: | 1 |
Suitable for number of devices: | 2 |
Module width: | 27 mm |
Cross section: | 35 mm² |
Length: | 1007 mm |
Width in number of modular spacings: | 36 |
Rated permanent current Iu: | 110 A |
Type of electric connection: | Pin |
Insulated: | yes |
Rated surge voltage: | 6 kV |
Conditioned rated short-circuit current Iq: | 100 kA |
Max. rated operation voltage Ue: | 500 V |
Rated short-time withstand current lcw: | 0 kA |
Suitable for devices with N-conductor: | no |
Suitable for devices with auxiliary switch: | no |
Colour: | Other |
