BPM-F-1200/17-P Szafa stojąca IP 54, zamykane dźwignią,
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 111055 |
GTIN(EAN) | 4015081106165 |
Price unit | piece |
Catalog price | 9 597,69 zł (7 803,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

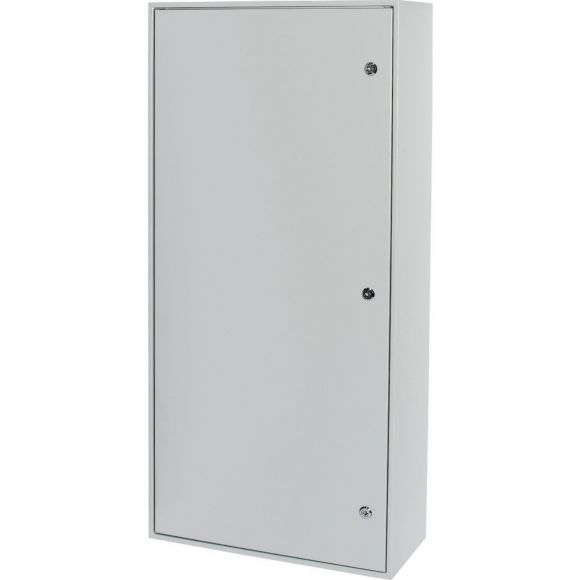

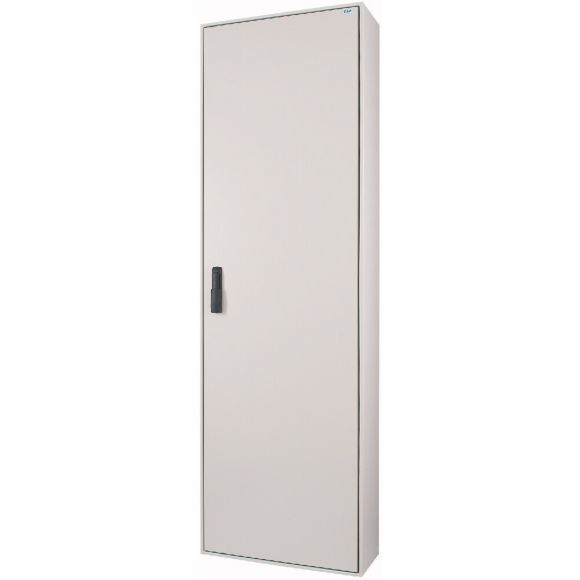

Floor standing distribution board for damp locations with rotary lever, IP54, BPM-F-...-P, width 1200 mm, outside height 1760 mm, front plate height 1650 mm, depth 320 mm, welded enclosure with door and roller lever lock, earthed metal covers, extraordinary stability as a result of welded construction, well-structured, multilayered design for easily accessible installation: base frame - DIN-rails ... - enclosure, door can be right-hand or left-hand door, ample wiring area, open cable entries on top and bottom, prepared for F3A gland plate insert, variable interior fittings with / without removable mounting frame, indoor installation with MSW or mounting towers possible, if using an MSW assembly configuration, 2 pairs of BPZ-CTS-S corner towers and 1 BPZ-SNAP-MSW-CTS snap fitting element will be additionally required, if using a base frame assembly configuration, 2 BPZ-FPS front plate supports will be additionally required, gray, RAL 7035
Additional features:
Information | Value |
---|---|
Net weight: | 60,1 kg |
ETIM class: | Enclosure/cabinet (empty) |
Width: | 1230 mm |
Height: | 1790 mm |
Depth: | 350 mm |
Material: | Steel |
Material quality: | Other |
Surface finishing: | Powder coating |
Colour: | Grey |
RAL-number: | 7035 |
Freestanding: | yes |
Floor standing wall model: | no |
Suitable for wall mounting: | no |
Corner model: | no |
Intermediate mounting: | no |
Couplable: | no |
With mounting plate: | no |
Mounting plate depth-adjustable: | no |
Suitable for wall built-in: | no |
Pole fastening: | no |
Number of doors: | 2 |
Number of locks: | 0 |
Suitable for metrical mounting: | yes |
Suitable for outdoor set-up: | no |
Pitched roof: | no |
EMC-version: | yes |
With glazed door: | no |
With ventilation door: | no |
With rear door: | no |
Impact strength: | IK10 |
Degree of protection (IP): | IP55 |
Degree of protection (NEMA): | Other |
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890: | 0 W |
Max. permissible load of the enclosure according to IEC 62208: | 0 N |
Max. permissible load of the door(s) according to IEC 62208: | 0 N |
Max. permissible load of the mounting plate according to IEC 62208: | 0 N |
