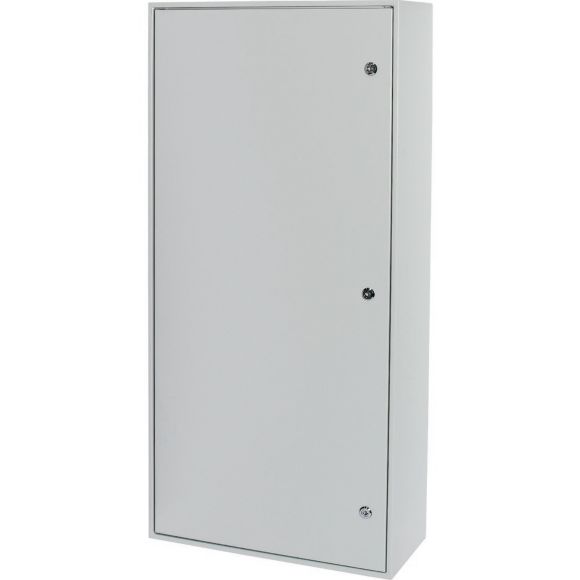

BPM-O-800/12 Rozdzielnica natynkowa IP 54, bez wypos.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 111030 |
| GTIN(EAN) | 4015081105915 |
| Price unit | piece |
| Catalog price | 4 757,64 zł (3 868,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
IP54 surface-mounted service distribution board for damp locations, BPM-O-...Width 800 mm, outside height 1260 mm, front plate height 1150 mm, depth 270 mm, welded enclosure with door and double-bit lock, earthed metal covers, extraordinary stability as a result of welded construction, well-structured, multilayered design for easily accessible installation, door can be right-hand or left-hand door, ample wiring area, open cable entry on top, prepared for F3A gland plate insert, variable interior fittings with or without removable mounting frame, indoor installation with MSW or mounting towers possible, if using an MSW assembly configuration, 2 pairs of BPZ-CTS-S corner towers and 1 BPZ-SNAP-MSW-CTS snap fitting element will be additionally required, if using a base frame assembly configuration, 2 BPZ-FPS front plate supports will be additionally required, gray, RAL 7035
Additional features:
| Information | Value |
|---|---|
| Net weight: | 40,3 kg |
| ETIM class: | Small distribution board |
| Mounting method: | Surface mounted |
| Colour: | Grey |
| Width: | 830 mm |
| Height: | 1290 mm |
| Depth: | 300 mm |
| RAL-number: | 7035 |
| With mounting plate: | no |
| Built-in depth: | 300 mm |
| Number of rows: | 7 |
| Built-in height: | 1290 mm |
| Type of covering: | Door |
| Built-in width: | 830 mm |
| EMC-version: | yes |
| Extension possible: | yes |
| Inner depth: | 265 mm |
| DIN-rail: | no |
| Housing material: | Steel |
| Width in number of modular spacings: | 35 |
| Type of closure: | Other |
| Degree of protection (IP): | IP55 |
| Transparent cover/door: | no |
| With lock: | no |
| Cover model: | Closed |
| Earthing terminal block: | no |
| Neutral terminal block: | no |
| Signal passing door: | no |
