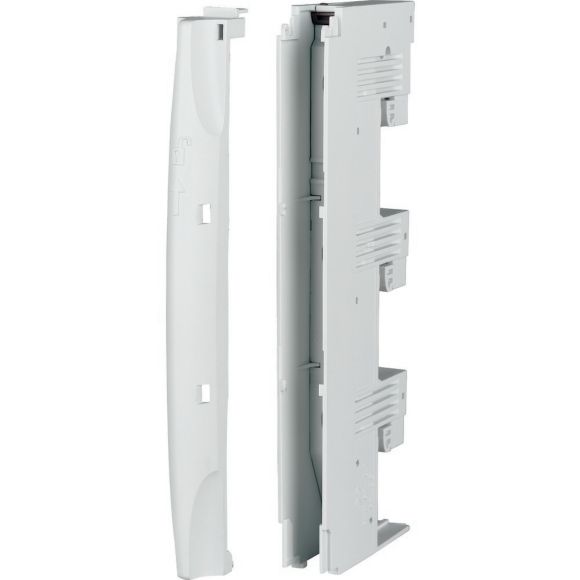

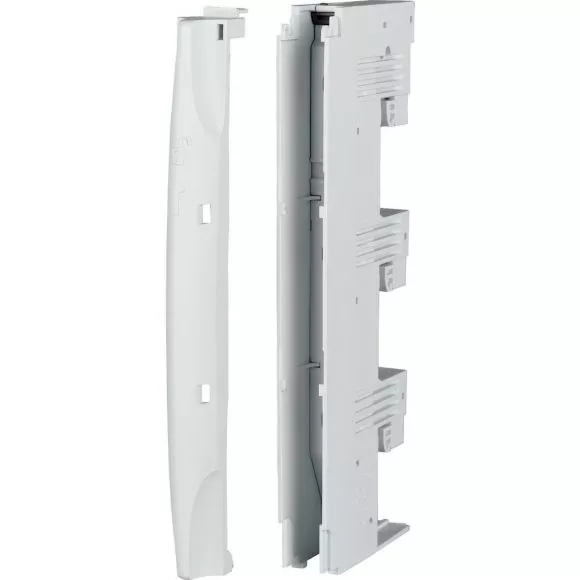

BBA-TP3/16 Adapter przyłączający
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 107205 |
| GTIN(EAN) | 4015081069682 |
| Price unit | piece |
| Catalog price | 329,52 zł (267,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przyłączeniowa płytka zaciskowa, system 60-mm, bieguny=3, technika zacisków sprężynowych, przekrój przyłącza=1.5 do 16mmkw lub AWG16-AWG6, Ie=80A, szerokość=20mm, zastosowanie do szyny 12x5/10 do 30x5/10 i podwójnego profilu T, bez silikonu, wolne od chloru, samogasnący zgodnie z UL 94, odporność na prądy pełzające CTI 200, odporność na temperatury do 120°C, mocowanie bezpośrednio na szynach zbiorczych
Additional features:
| Information | Value |
|---|---|
| Net weight: | 180 g |
| ETIM class: | Busbar terminal |
| Busbar thickness: | 5 - 10 mm |
| Busbar width: | 12 - 30 mm |
| Suitable for: | Flat rail |
| Width clamp: | 20 mm |
| Max. conductor cross section: | 16 mm² |
| Max. rated operation current Ie: | 80 A |
| Suitable for round conductor connection: | yes |
| Suitable for sector conductor connection: | yes |
| Suitable for strip conductor connection: | no |
