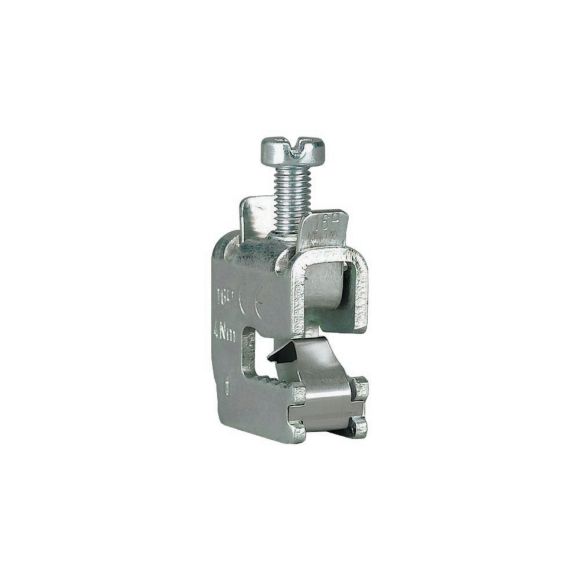

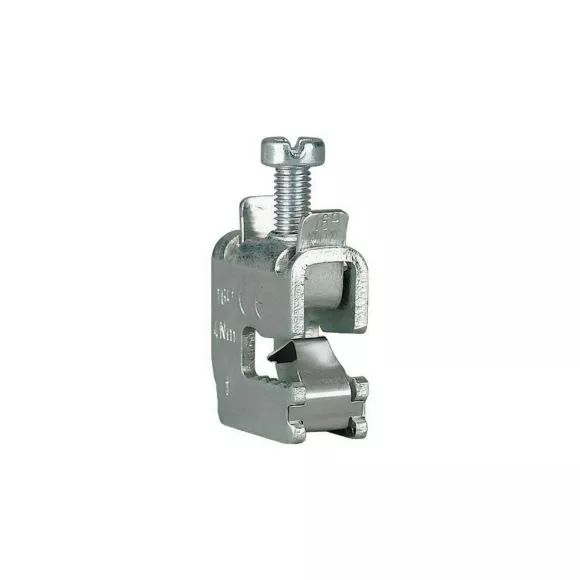

AKU16/5 Zacisk przyłączeniowy 180A 1-bieg. 1,5-16
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 107187 |
| GTIN(EAN) | 4015081069507 |
| Price unit | piece |
| Catalog price | 20,91 zł (17,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Uniwersalne zaciski przyłączeniowe przewodu, 1.5-16mm² AWG 14-AWG 6., z bezpośrednim zaciskiem, 8x6x0,5, 180A, zastosowanie do wszystkich szyn płaskich o grubości 5 mm, szerokość=11,5mm, przestrzeń zacisków szer. x wys.=7.5x7.5mm, z wbudowanym elementem dopasowującym, z otwartą przestrzenią zacisków i śrubą zabezpieczoną przed zgubieniem, zastosowanie do SASY60i, SASY185i
Additional features:
| Information | Value |
|---|---|
| Net weight: | 20 g |
| ETIM class: | Busbar terminal |
| Suitable for: | Flat rail |
| Max. conductor cross section: | 16 mm² |
| Width clamp: | 11.5 mm |
| Busbar width: | 0 - 0 mm |
| Busbar thickness: | 5 - 5 mm |
| Suitable for strip conductor connection: | yes |
| Suitable for round conductor connection: | yes |
| Suitable for sector conductor connection: | yes |
| Max. rated operation current Ie: | 180 A |
