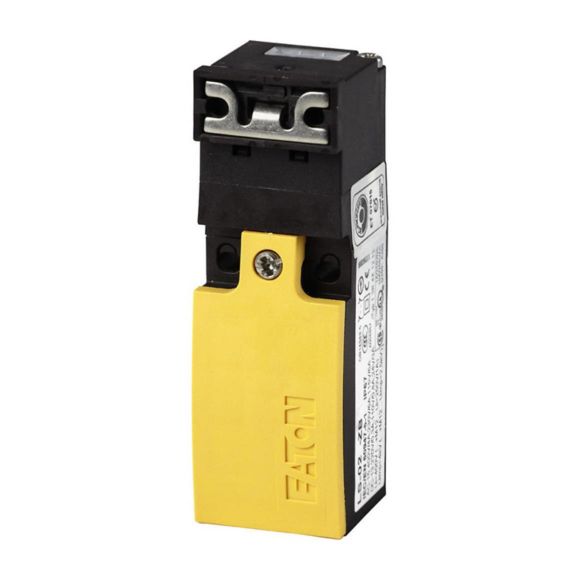

LS-S11S-ZB Łącznik krańcowy bezpieczeństwa
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 106877 |
| GTIN(EAN) | 4015081066407 |
| Price unit | piece |
| Catalog price | 572,20 zł (465,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
IEC EN 60947-5-1, IP66, dopuszczenie przez stowarzyszenie ubezpieczycieli branżowych GS-ET-15, urządzenia na wszystkich rynkach, zabezpieczający przełącznik pozycyjny z oddzielnym elementem sterującym do pokrywy ochronnej, uruchamianie wymuszone i zestyki rozwierne wymuszone, niezawodność manipulacji porzez obracany, ale nie demontowalny, końcówka napędowa, przystosowany do elektroniki według IEC/EN 61131-2
Additional features:
| Information | Value |
|---|---|
| Net weight: | 80 g |
| ETIM class: | End switch |
| Width sensor: | 30 mm |
| Diameter sensor: | 0 mm |
| Height of sensor: | 96 mm |
| Length of sensor: | 33.35 mm |
| Rated operation current Ie at AC-15, 24 V: | 10 A |
| Rated operation current Ie at AC-15, 125 V: | 6 A |
| Rated operation current Ie at AC-15, 230 V: | 6 A |
| Rated operation current Ie at DC-13, 24 V: | 3 A |
| Rated operation current Ie at DC-13, 125 V: | 0.8 A |
| Rated operation current Ie at DC-13, 230 V: | 0.3 A |
| Switching function: | Quick-break switch |
| Forced opening: | yes |
| Number of safety auxiliary contacts: | 1 |
| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cuboid |
| Housing material: | Plastic |
| Coating housing: | Other |
| Type of control element: | Other |
| Alignment of the control element: | Other |
| Type of electric connection: | Cable entry metrical |
| Suitable for safety functions: | yes |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Ambient temperature during operating: | -25 - 70 °C |
| Degree of protection (IP): | IP66 |
| Degree of protection (NEMA): | Other |
