BPZ-TSB-800 Szyna do mocowania zacisków
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 106449 |
| GTIN(EAN) | 4015081062195 |
| Price unit | piece |
| Catalog price | 97,42 zł (79,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

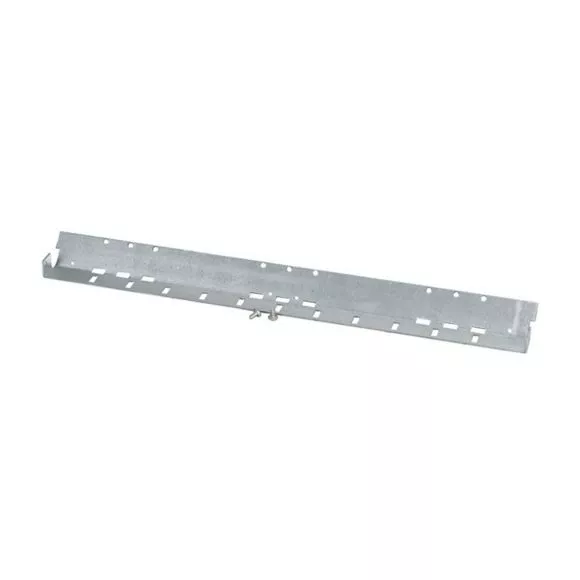

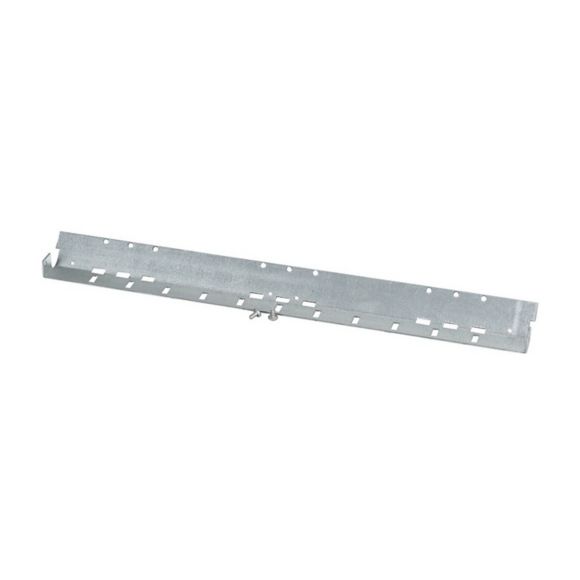

Terminal support, BPZ-TSB, for mounting (KLV-)KL terminal bars, width 800 mm, for wall-mounting and floor standing distribution boards, mounted directly on BPZ-CTS corner tower kit. The PE conductor can be installed directly (conductive connection with distribution board), neutral conductor installation with KT terminal supports, material characteristic: sheet steel, zinc coated, equipment supplied: 1 terminal support rail, various mounting accessories
Additional features:
| Information | Value |
|---|---|
| Net weight: | 400 g |
| Country of origin | Czechy |
| ETIM class: | Earthing rail for distribution board |
| Number of connections: | 0 |
| Rated current: | 0 A |
| Material: | Steel |
| Surface of the contact rail: | Galvanized |
| Rail length: | 0 mm |
| Rail width: | 600 mm |
| Busbar thickness: | 1.5 mm |
| Clearance from back plate: | 50 mm |
| Mounting method: | Direct mounting |
| Horizontal mounting: | yes |
| Vertical mounting: | no |
| Insulated mounting: | no |
| Max. tightening torque: | 0 Nm |
| Connection size, connection facility: | Other |
