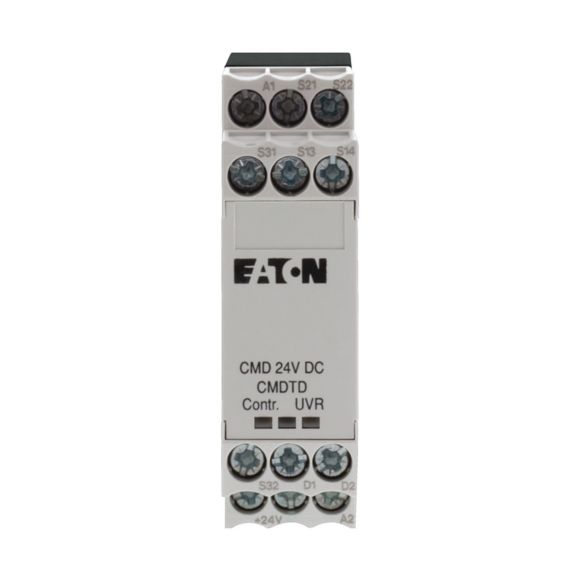

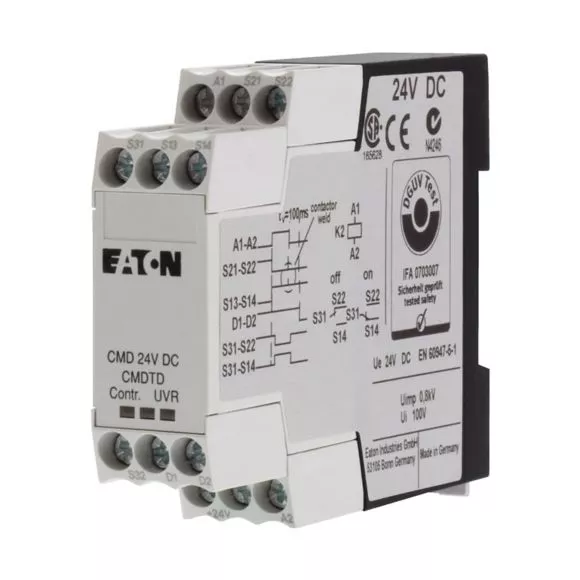

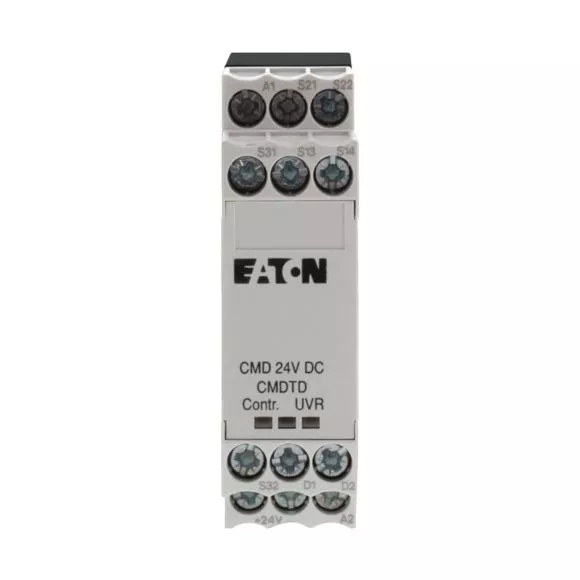

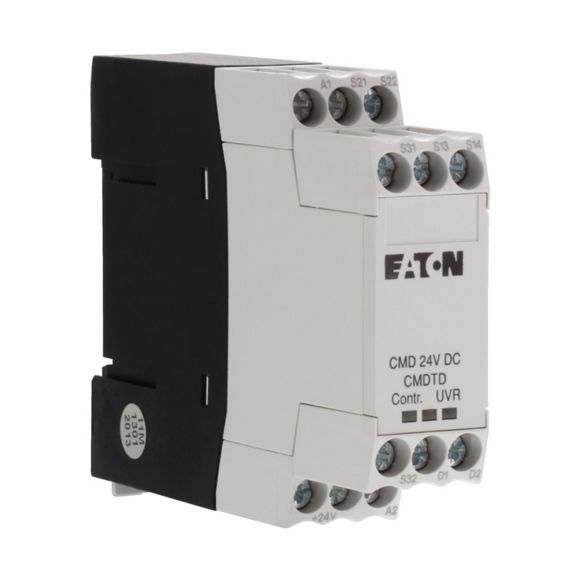

CMD(24VDC) przekaźnik kontrol. stycz (24VDC)
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 106170 |
| GTIN(EAN) | 4015081059409 |
| Price unit | piece |
| Catalog price | 1 553,49 zł (1 263,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik monitorujący stycznika do niezawodnych zastosowań w zatrzymaniu awaryjnym do poziomu Performance Level e. Monitoruje niezawodne przełączanie stycznika mocy. Ogranicza konieczność korzystania z okablowania prądu głównego nie trzeba wykonywać redundancyjnego montażu ochronnego.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 130 g |
| ETIM class: | Contactor relay |
| Mounting method: | DIN rail |
| Interface: | no |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Rated operation current Ie, 400 V: | 0 A |
| Suitable for manual operation: | no |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| With LED indication: | yes |
| Connection type auxiliary circuit: | Screw connection |
| Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
| Number of auxiliary contacts as normally open contact, leading: | 0 |
| Voltage type for actuating: | DC |
