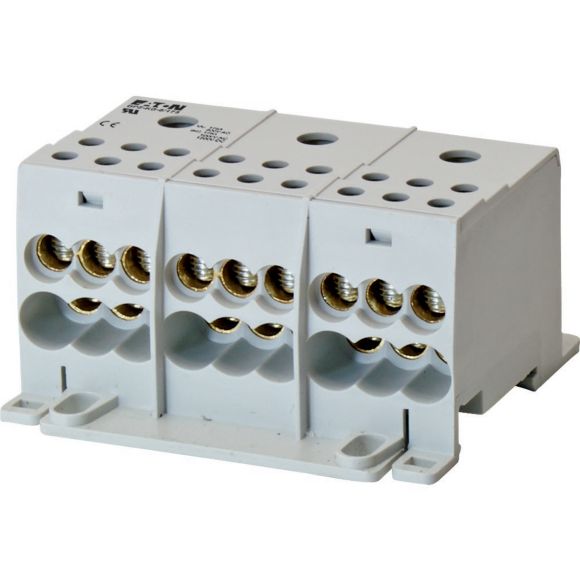

BPZ-KB-6/175 Modułowy blok listew rozdzielczych,3bieg
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 102717 |
| GTIN(EAN) | 4015081025770 |
| Price unit | piece |
| Catalog price | 834,06 zł (678,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
3-pole terminal block, BPZ-KB-6/175, rated operational current 175 A, mounting on DIN-rail or mounting plate, UL-listed, makes wiring less time-consuming, ca. 80% less space is required.Module design, 1-pole to 4-pole systems can be assembled by using multiple blocks. Degree of protection IP20, max. operational voltage 1000 V AC , 1500 VDC. Equipment supplied: 1 3 pole terminal block
Additional features:
| Information | Value |
|---|---|
| Net weight: | 415 g |
| ETIM class: | Distributor assembly terminal blocks |
| Width: | 80.1 mm |
| Height: | 71 mm |
| Depth: | 43 mm |
| Number of poles: | 3 |
| Number of clamp positions per pole: | 7 |
| Conductor cross section flexible (fine-strand) with cable end sleeve: | 2.5 - 70 mm² |
| Conductor cross section solid (solid, stranded): | 2.5 - 70 mm² |
| Max. rated current: | 175 A |
| With N-rail: | no |
| With PE-rail: | no |
