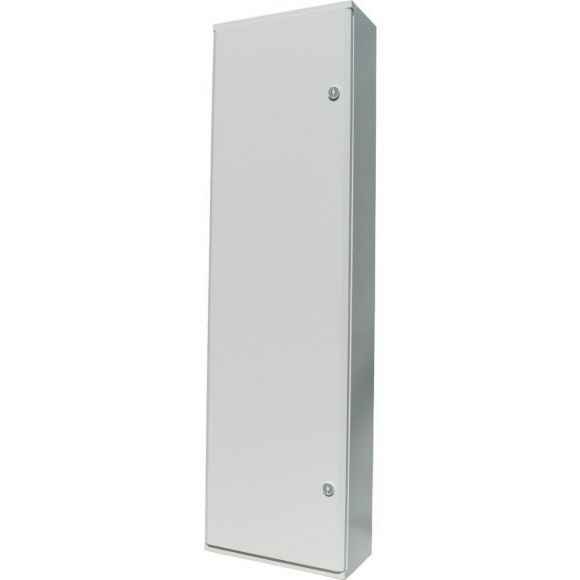

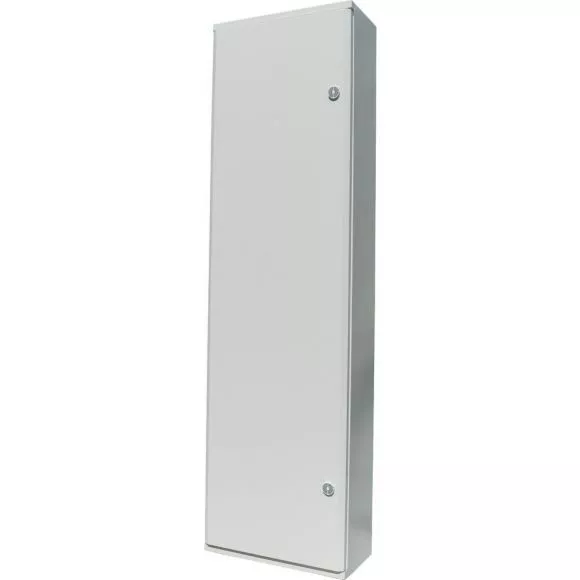

BP-F-400/17/3 Rozdzielnica stojąca IP 30, bez wyposaż.
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 102055 |
GTIN(EAN) | 4015081022038 |
Price unit | piece |
Catalog price | 3 724,44 zł (3 028,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Floor standing distribution board with cam lock, IP30, gray, RAL 7035, width 400 mm, outside height 1760 mm, front plate height 1650 mm, depth of 300 mm, incl. gland plate inserts at the top and bottom, metal door with cam lock, door can be right-hand or left-hand door, if using an MSW assembly configuration, 2 pairs of BPZ-CTS-S corner towers and 1 BPZ-SNAP-MSW-CTS snap fitting element will be additionally required, if using a base frame assembly configuration, 2 BPZ-FPS front plate supports will be additionally required. indoor installation with MSW or mounting towers possible, earthed metal covers, extraordinary stability as a result of welded construction, ample wiring area, variable interior fittings with / without removable mounting frame, well-structured, multilayered design for easily accessible installation: base frame - DIN-rails ... - enclosure
Additional features:
Information | Value |
---|---|
Net weight: | 34 kg |
ETIM class: | Enclosure/cabinet (empty) |
Colour: | Grey |
Width: | 415 mm |
Height: | 1780 mm |
Depth: | 315 mm |
RAL-number: | 7035 |
With mounting plate: | no |
Number of doors: | 1 |
Number of locks: | 1 |
Suitable for wall mounting: | no |
EMC-version: | yes |
With glazed door: | no |
Couplable: | no |
Material quality: | Other |
Material: | Steel |
Impact strength: | IK08 |
Degree of protection (IP): | IP30 |
Suitable for outdoor set-up: | no |
Suitable for metrical mounting: | yes |
Mounting plate depth-adjustable: | yes |
With ventilation door: | no |
Surface finishing: | Powder coating |
With rear door: | no |
Suitable for wall built-in: | no |
Pitched roof: | no |
Pole fastening: | no |
Degree of protection (NEMA): | Other |
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890: | 0 W |
Max. permissible load of the enclosure according to IEC 62208: | 0 N |
Max. permissible load of the door(s) according to IEC 62208: | 0 N |
Max. permissible load of the mounting plate according to IEC 62208: | 0 N |
Floor standing wall model: | no |
Freestanding: | yes |
Corner model: | no |
Intermediate mounting: | no |
