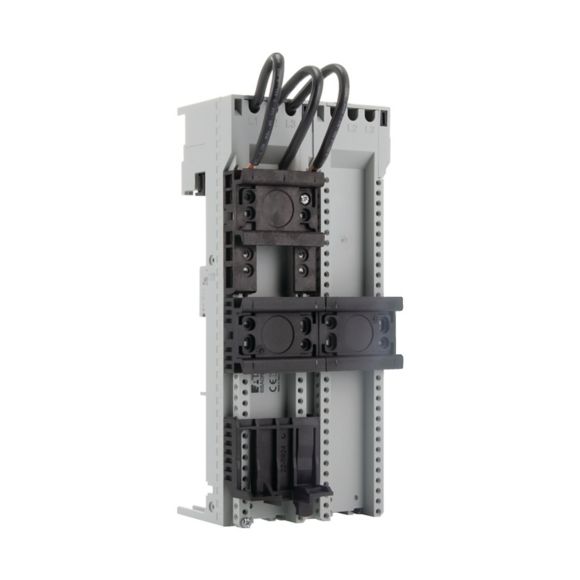

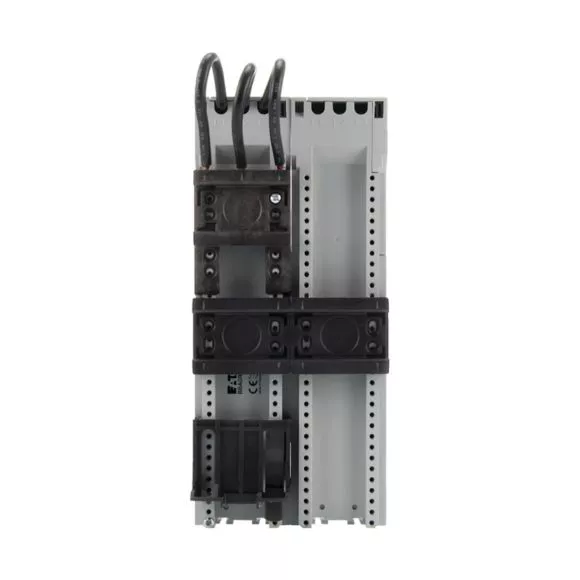

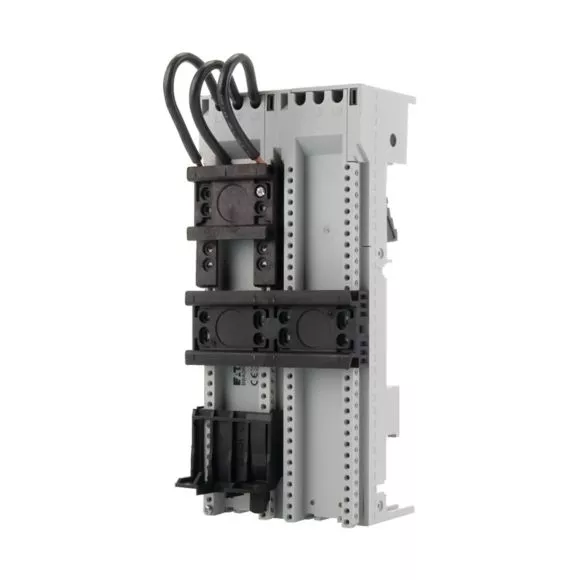

BBA0R-32 Adapter na szyny zbiorcze szer. 90mm 32A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 101454 |
GTIN(EAN) | 4015081013746 |
Price unit | piece |
Catalog price | 631,24 zł (513,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
90mm adapter na szyny zbiorcze do 60mm systemu szyny zbiorczej, trzy szyny montażowe, trzy odpowiednio dobrane przewody (AWG10 / 6mm²) umożliwiające podłączenie do aparatu łączeniowego, zastosowanie do wyłącznika ochronnego silnika PKZM0, PKE i starter bezpośredni/ MSC-R ze stycznikiem mocy DILM17 do DILM32, znamionowy prąd pracy: 32A
Additional features:
Information | Value |
---|---|
Net weight: | 494 g |
ETIM class: | Busbar adapter |
Busbar distance: | 60 mm |
Mounting rail armament: | 2 mounting rails |
Max. busbar thickness: | 10 mm |
Width of the adapter: | 90 mm |
Rail width: | 35 mm |
Type of electric connection: | 3 conductors AWG 10 |
Min. busbar thickness: | 5 mm |
Rated current In: | 32 A |
