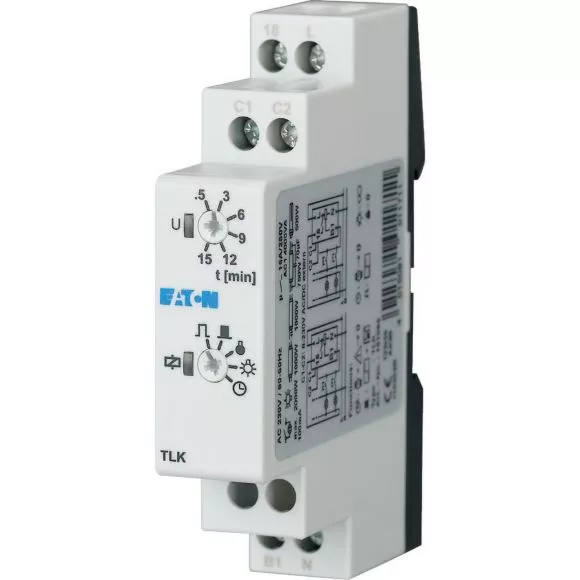

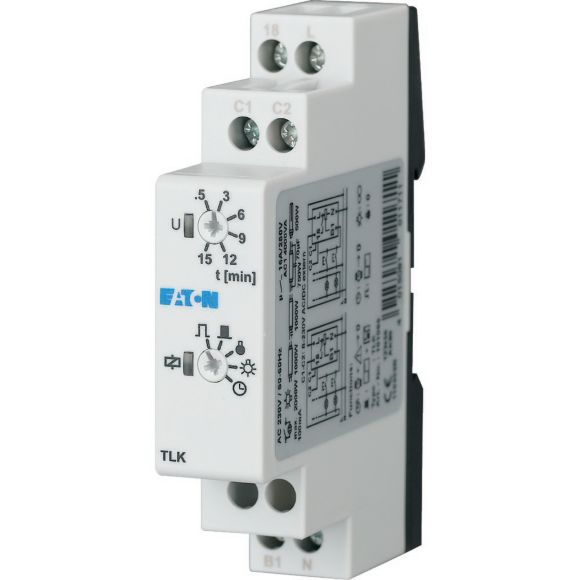

TLK Automat schodowy
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 101066 |
| GTIN(EAN) | 4015081011711 |
| Price unit | piece |
| Catalog price | 682,40 zł (554,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik czasowy, samoczynny wyłącznik schodowy, przekaźnik impulsowy, obsługa wielofunkcyjna , 6 funkcje, napięcie zasilające 230VAC/DC
Additional features:
| Information | Value |
|---|---|
| Net weight: | 70 g |
| ETIM class: | Timer relay |
| Nominal current: | 16 A |
| Width: | 17.5 mm |
| Height: | 87 mm |
| Depth: | 65 mm |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Function flashing, starting with pause, fixed time: | no |
| Function flashing, starting with pulse, fixed time: | no |
| Clock function, starting with pause, variable: | no |
| Clock function, starting with pulse, variable: | no |
| With semiconductor output: | no |
| Function delay-on energization: | no |
| Function floating contact on energization: | no |
| Function star-delta: | no |
| Time range: | 30 - 720 s |
| Function delay on de-energization: | yes |
| Function floating contact on de-energization: | no |
| Function pulse shaping: | no |
| Type of electric connection: | Screw connection |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, normally open contact: | 1 |
| Number of outputs, delayed, change-over contact: | 0 |
| Pluggable on auxiliary contact block: | no |
| Outputs, reversible delayed/undelayed: | no |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| Voltage type for actuating: | AC |
