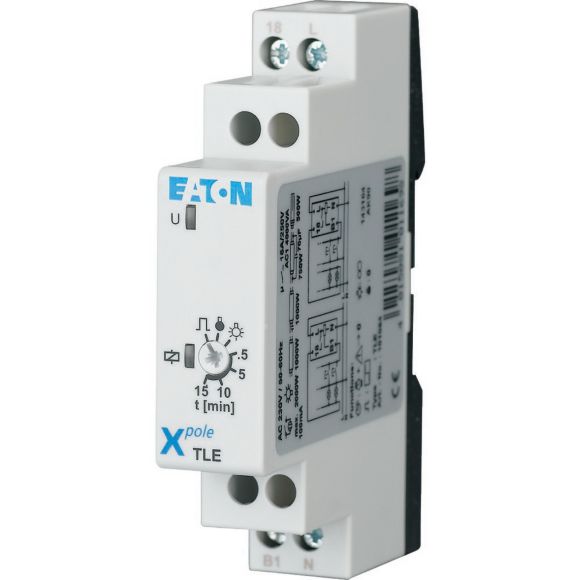

TLE Automat schodowy
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 101064 |
GTIN(EAN) | 4015081011698 |
Price unit | piece |
Catalog price | 614,26 zł (499,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik czasowy, samoczynny wyłącznik schodowy, przekaźnik impulsowy, obsługa wielofunkcyjna , 4 funkcje, napięcie zasilające 230VAC/DC
Additional features:
Information | Value |
---|---|
Net weight: | 61 g |
ETIM class: | Timer relay |
Nominal current: | 16 A |
Width: | 17.5 mm |
Height: | 87 mm |
Depth: | 65 mm |
Remote operation possible: | no |
Suitable as remote control: | no |
Function flashing, starting with pause, fixed time: | no |
Function flashing, starting with pulse, fixed time: | no |
Clock function, starting with pause, variable: | no |
Clock function, starting with pulse, variable: | no |
With semiconductor output: | no |
Function delay-on energization: | no |
Function floating contact on energization: | no |
Function star-delta: | no |
Time range: | 30 - 720 s |
Function delay on de-energization: | yes |
Function floating contact on de-energization: | no |
Function pulse shaping: | no |
Type of electric connection: | Screw connection |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage DC: | 0 - 0 V |
Number of outputs, undelayed, normally closed contact: | 0 |
Number of outputs, undelayed, normally open contact: | 0 |
Number of outputs, undelayed, change-over contact: | 0 |
Number of outputs, delayed, normally closed contact: | 0 |
Number of outputs, delayed, normally open contact: | 1 |
Number of outputs, delayed, change-over contact: | 0 |
Pluggable on auxiliary contact block: | no |
Outputs, reversible delayed/undelayed: | no |
Suitable for DIN rail (top hat rail) mounting: | yes |
Voltage type for actuating: | AC |
