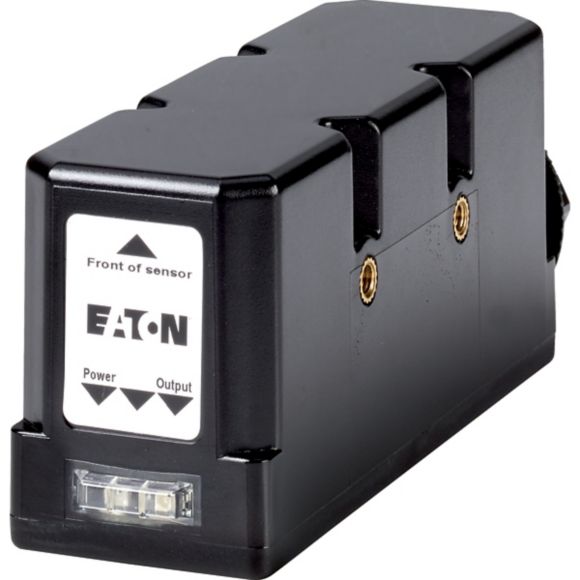

E67-LRDP110-HDD Czujnik optyczny, zasilanie DC
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 100549 |
GTIN(EAN) | 4015081900220 |
Price unit | piece |
Catalog price | 2 004,90 zł (1 630,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
E67 seria czujników Perfect Prox o dużym zasięgu, cechy produktu: Ukrywanie tła, rozszerzony zakres wykrywania do 240 cm, wskazania stanu zasilania i wyjścia, montaż poziomy i pionowy, łatwa konfiguracja, wykrywanie obiektów o różnych kolorach odblask i kontrast.
Additional features:
Information | Value |
---|---|
Net weight: | 210 g |
ETIM class: | Light scanner with background masking |
Voltage type: | DC |
Max. output current: | 100 mA |
Housing material: | Plastic |
Suitable for safety functions: | no |
Adjustment range: | 0 - 1100 mm |
Ambient temperature: | -35 - 55 °C |
With time function: | no |
Switching frequency: | 0 Hz |
Number of semiconductor outputs with signalling function: | 2 |
Number of contact energized outputs with signalling function: | 0 |
Number of protected semiconductor outputs: | 0 |
Number of protected contact energized outputs: | 0 |
Type of interface for safety communication: | Other |
Type of electric connection: | Other |
Type of switching output: | PNP |
Type of switch function: | Other |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 18 - 30 V |
Operation agent-safety class: | Safety class 2 |
Setting procedure: | Other |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Construction type housing: | Cuboid |
Laser protection class: | None |
Type of light: | Infrared light |
Light dot: | 0 mm² |
Max. output current at protected output: | 0 mA |
Min. reflector distance: | 0 mm |
With monitoring function downstream switching devices: | no |
With restart blockage: | no |
Response time: | 15 ms |
Transmission range of the safety field: | 0 m |
Switching voltage of OSSD at state "high": | 30 V |
Type of safety according to IEC 61496-1: | 1 |
Operating distance: | 0 - 0 mm |
Pre failure notice: | no |
Wavelength of the sensor: | 0 nm |
Material of optical surface: | Plastic |
Material of cable sheath: | Other |
Degree of protection (IP): | IP67 |
Analogue output 0 V ... 10 V: | no |
Analogue output 0 mA ... 20 mA: | no |
Analogue output -10 V ... +10 V: | no |
Analogue output 4 mA ... 20 mA: | no |
AWG-number: | 0 |
Width sensor: | 43 mm |
Diameter sensor: | 0 mm |
Height of sensor: | 59 mm |
With communication interface analogue: | no |
With communication interface AS-Interface: | no |
With communication interface CANOpen: | no |
With communication interface DeviceNet: | no |
With communication interface Ethernet: | no |
With communication interface INTERBUS: | no |
With communication interface PROFIBUS: | no |
With communication interface RS-232: | no |
With communication interface RS-422: | no |
With communication interface RS-485: | no |
With communication interface SSD: | no |
With communication interface SSI: | no |
Length of sensor: | 166 mm |
Max. switching distance: | 1400 mm |
With reflector: | no |
With other analogue output: | no |
Sensing mode: | Dark switching |
Rated switching distance: | 1100 mm |
Triangulation: | Background fade-out |
Degree of protection (NEMA): | Other |
