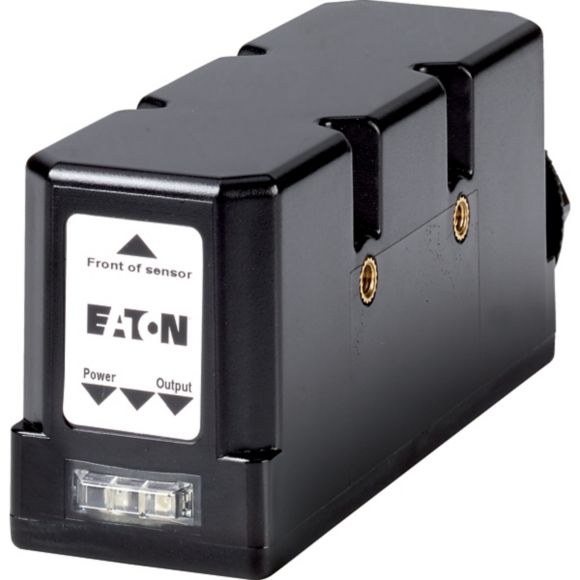

E67-LRDP100-HLD Czujnik optyczny, zasilanie DC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 100548 |
| GTIN(EAN) | 4015081900213 |
| Price unit | piece |
| Catalog price | 2 086,08 zł (1 696,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
E67 seria czujników Perfect Prox o dużym zasięgu, cechy produktu: Ukrywanie tła, rozszerzony zakres wykrywania do 240 cm, wskazania stanu zasilania i wyjścia, montaż poziomy i pionowy, łatwa konfiguracja, wykrywanie obiektów o różnych kolorach odblask i kontrast.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 210 g |
| ETIM class: | Light scanner with background masking |
| Voltage type: | DC |
| Max. output current: | 100 mA |
| Housing material: | Plastic |
| Suitable for safety functions: | no |
| Adjustment range: | 0 - 1000 mm |
| Ambient temperature: | -35 - 55 °C |
| With time function: | no |
| Switching frequency: | 0 Hz |
| Number of semiconductor outputs with signalling function: | 2 |
| Number of contact energized outputs with signalling function: | 0 |
| Number of protected semiconductor outputs: | 0 |
| Number of protected contact energized outputs: | 0 |
| Type of interface for safety communication: | Other |
| Type of electric connection: | Other |
| Type of switching output: | NPN |
| Type of switch function: | Other |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 18 - 30 V |
| Operation agent-safety class: | Safety class 2 |
| Setting procedure: | Other |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Construction type housing: | Cuboid |
| Laser protection class: | None |
| Type of light: | Infrared light |
| Light dot: | 0 mm² |
| Max. output current at protected output: | 0 mA |
| Min. reflector distance: | 0 mm |
| With monitoring function downstream switching devices: | no |
| With restart blockage: | no |
| Response time: | 15 ms |
| Transmission range of the safety field: | 0 m |
| Switching voltage of OSSD at state "high": | 30 V |
| Type of safety according to IEC 61496-1: | 1 |
| Operating distance: | 0 - 0 mm |
| Pre failure notice: | no |
| Wavelength of the sensor: | 0 nm |
| Material of optical surface: | Plastic |
| Material of cable sheath: | Other |
| Degree of protection (IP): | IP67 |
| Analogue output 0 V ... 10 V: | no |
| Analogue output 0 mA ... 20 mA: | no |
| Analogue output -10 V ... +10 V: | no |
| Analogue output 4 mA ... 20 mA: | no |
| AWG-number: | 0 |
| Width sensor: | 43 mm |
| Diameter sensor: | 0 mm |
| Height of sensor: | 59 mm |
| With communication interface analogue: | no |
| With communication interface AS-Interface: | no |
| With communication interface CANOpen: | no |
| With communication interface DeviceNet: | no |
| With communication interface Ethernet: | no |
| With communication interface INTERBUS: | no |
| With communication interface PROFIBUS: | no |
| With communication interface RS-232: | no |
| With communication interface RS-422: | no |
| With communication interface RS-485: | no |
| With communication interface SSD: | no |
| With communication interface SSI: | no |
| Length of sensor: | 166 mm |
| Max. switching distance: | 1300 mm |
| With reflector: | no |
| With other analogue output: | no |
| Sensing mode: | Light switching |
| Rated switching distance: | 1000 mm |
| Triangulation: | Background fade-out |
| Degree of protection (NEMA): | Other |
