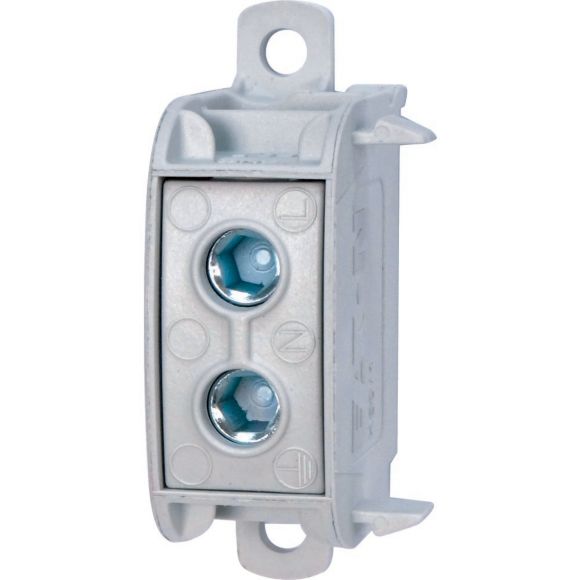

K50/1 Zacisk pojedynczy przewodów PE/N/PEN 100
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 098573 |
| GTIN(EAN) | 4015080985730 |
| Price unit | piece |
| Catalog price | 83,27 zł (67,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zacisk blokowy/szeregowy, 2.5-50mm², 1b, 150A, zaciskane na szynie DIN, przykręcany na płycie montażowej, mocowanie trzpieniowe w obudowie Cl, do przewodu L, N E t, PE, stopień ochrony IP2X, mocowanie szeregowe na innych zaciskach K50/1, taśma miedziana 3x9x0.8 zaciskana
Additional features:
| Information | Value |
|---|---|
| Net weight: | 41 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 1 |
| Nominal current: | 150 A |
| Mounting method: | DIN-rail/screw |
| Number of inputs: | 1 |
| Number of outputs: | 10 |
| Suitable for solid conductors: | no |
| Suitable for stranded conductors: | yes |
| Suitable for fine strand conductors: | yes |
| Suitable for fine strand conductors without cable end sleeve: | no |
| Suitable for extra fine-strand conductors: | no |
| Suitable for extra fine-strand conductors without cable end sleeve: | no |
| Conductor cross section, input: | 2.5 - 50 mm² |
| Conductor cross section, output: | 2.5 - 50 mm² |
| Conductor cross section, input AWG: | 14 - 14 mm² |
| Conductor cross section, output AWG: | 14 - 14 mm² |
| Contact safe: | yes |
| Height: | 60 mm |
| Width: | 18 mm |
| Depth: | 36 mm |
| Connection type: | Screwing |
