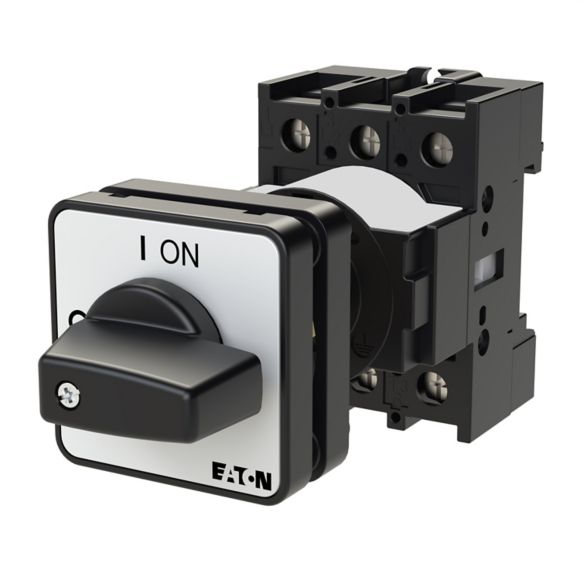

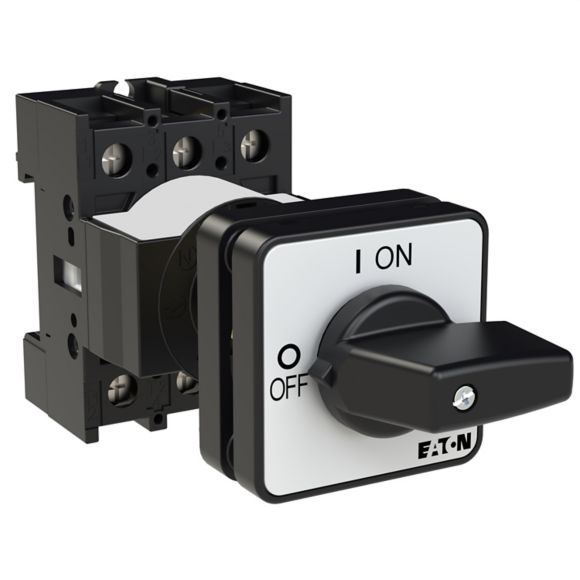

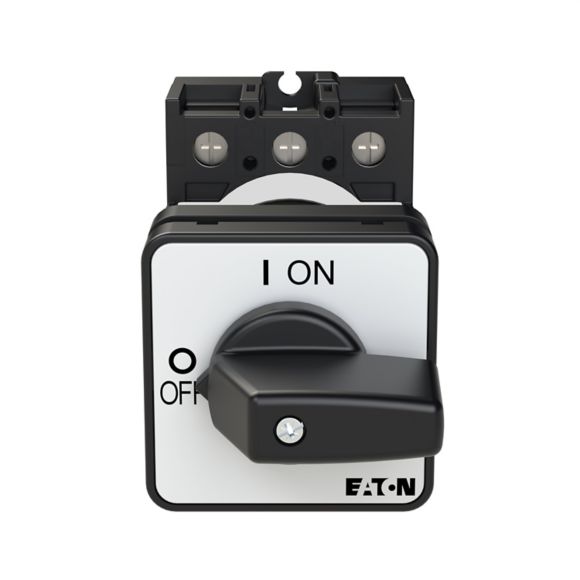

P1-32/Z Przełącznik Zał.-Wył., 3 bieg., 32 A, montaż rozłączny, pokrętło czarne bez możliwości blokady
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 098049 |
GTIN(EAN) | 4015080980490 |
Price unit | piece |
Catalog price | 386,22 zł (314,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłącznik główny / rozłącznik izolacyjny wł./wył. wg IEC/EN 60947-3, 690V/32A, klasa ochrony przód IP65, pokrętło z krótkim piórkiem, czarne. Rozłączniki izolacyjne P3 mają niewielkie wymiary i są bardzo wytrzymałe. Napęd ręczny działa bezpośrednio na zestyki. Zestyki po wyłączeniu rozwierają się w sposób wymuszony. Konstrukcja ogólna: obudowa natynkowa z izolacją, montaż, montaż centralny, montaż pośredni, montaż rozdzielacza IVS
Additional features:
Information | Value |
---|---|
Net weight: | 131 g |
ETIM class: | Switch disconnector (low voltage) |
Rated operation power at AC-3, 400 V: | 13 kW |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Rated permanent current Iu: | 32 A |
Number of poles: | 3 |
Rated operating voltage: | 690 - 690 V |
Conditioned rated short-circuit current Iq: | 80 kA |
Degree of protection (IP), front side: | IP65 |
Number of auxiliary contacts as change-over contact: | 0 |
Number of switches: | 1 |
Interlockable: | no |
Motor drive integrated: | no |
Type of electrical connection of main circuit: | Screw connection |
Version as emergency stop installation: | no |
Type of control element: | Short thumb-grip |
Version as main switch: | no |
Version as safety switch: | no |
Version as maintenance-/service switch: | no |
Rated operation power at AC-23, 400 V: | 15 kW |
Rated short-time withstand current lcw: | 0.64 kA |
Colour control element: | Black |
Suitable for floor mounting: | no |
Suitable for front mounting 4-hole: | no |
Suitable for front mounting centre: | no |
Suitable for distribution board installation: | no |
Suitable for intermediate mounting: | yes |
Max. rated operation voltage Ue AC: | 690 V |
Motor drive optional: | no |
Voltage release optional: | no |
Device construction: | Built-in device fixed built-in technique |
Rated permanent current at AC-21, 400 V: | 32 A |
Switching power at 400 V: | 15 kW |
Version as reversing switch: | no |
Rated permanent current at AC-23, 400 V: | 32 A |
Degree of protection (NEMA): | 12 |
