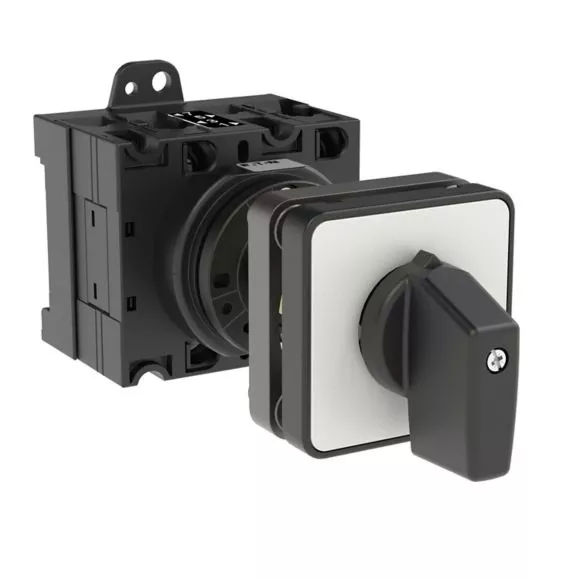

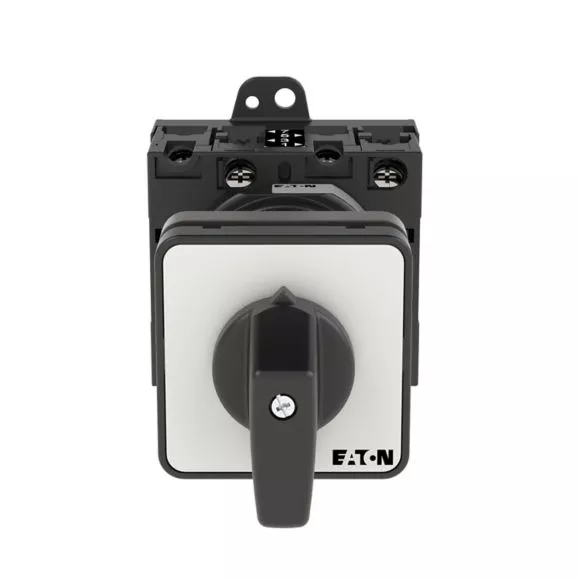

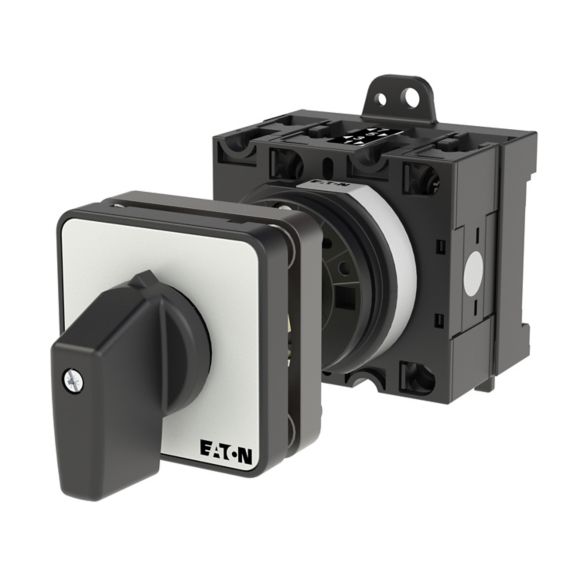

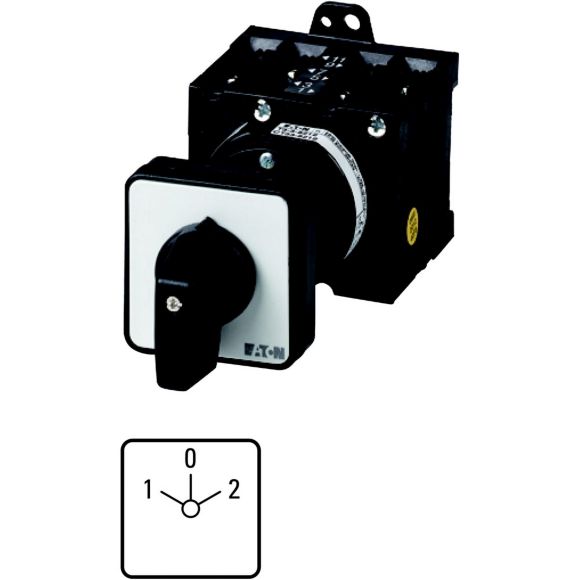

T3-2-8400/Z Przełącznik nawrotny, Styki: 4, 32 A, tabliczka: 1-0-2, 45 °, bez samopowrotu, montaż rozłączny, pokrętło czarne bez możliwości blokady
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 095060 |
GTIN(EAN) | 4015080950608 |
Price unit | piece |
Catalog price | 534,56 zł (434,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Łącznik krzywkowy wg IEC/EN60947, wielkość konstrukcyjna T3, konstrukcja pośrednia, mocowanie przykręcane zatrzaskowe, napęd sprzęgowy drzwi i pokrywy, tabliczka czołowa 48X48, klasa ochrony na przedzie IP65 z czarnym pokrętłem, pomiarowy prąd stały Iu 32A, znamionowe napięcie pracy Ue 690V, dostępne akcesoria zgodnie z danymi katalogu łączników krzywkowych T
Additional features:
Information | Value |
---|---|
Net weight: | 195 g |
ETIM class: | Off-load switch |
Model: | Reversing switch |
Number of poles: | 2 |
With zero (off) position: | yes |
With retraction in 0-position: | no |
Rated permanent current Iu: | 32 A |
Rated operation current Ie at AC-3, 400 V: | 23.7 A |
Rated operation power at AC-3, 400 V: | 12 kW |
Degree of protection (IP), front side: | IP65 |
Degree of protection (NEMA), front side: | 12 |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
Suitable for floor mounting: | yes |
Suitable for front mounting: | no |
Suitable for distribution board installation: | no |
Suitable for intermediate mounting: | yes |
Complete device in housing: | no |
Housing material: | Plastic |
Type of control element: | Short thumb-grip |
Type of electrical connection of main circuit: | Screw connection |
