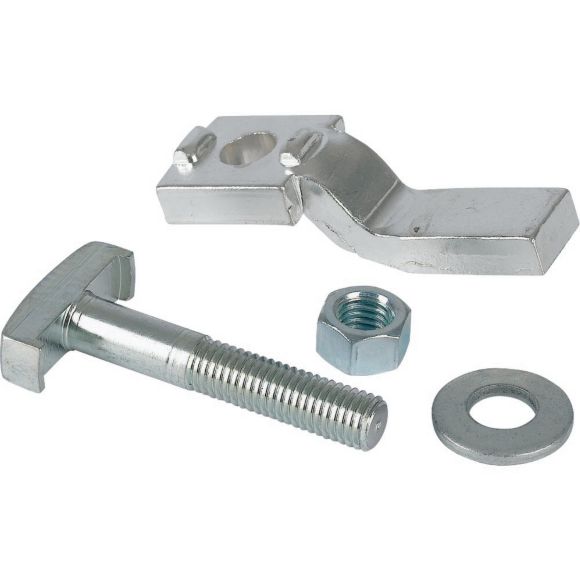

AW3040L-K20 Zaciski szyn zbiorczych dla 2x30x10,2x
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 089096 |
| GTIN(EAN) | 4015080890966 |
| Price unit | piece |
| Catalog price | 324,11 zł (263,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zaciski do szyn zbiorczych, do obudowy szyn zbiorczych Cl, przyłącze przewodu taśmowego i szyn miedzianych do głównej szyny zbiorczej CI, zastosowanie do szyn zbiorczych 1x (30x10), przekrój przyłącza przewodu taśmowego=3x9x0.8 do 11x21x1, tylko w połączeniu z K20x5, K20x10 i K20x15
Additional features:
| Information | Value |
|---|---|
| Net weight: | 282 g |
| ETIM class: | Busbar terminal |
| Busbar thickness: | 10 - 10 mm |
| Busbar width: | 30 - 40 mm |
| Suitable for: | Flat rail |
| Width clamp: | 30 mm |
| Max. conductor cross section: | 231 mm² |
| Max. rated operation current Ie: | 1600 A |
| Suitable for round conductor connection: | no |
| Suitable for sector conductor connection: | no |
| Suitable for strip conductor connection: | yes |
