KST44-125 Króciec gwintowany CI dół bez zac.(modu
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 088758 |
GTIN(EAN) | 4015080887584 |
Price unit | piece |
Catalog price | 2 103,30 zł (1 710,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

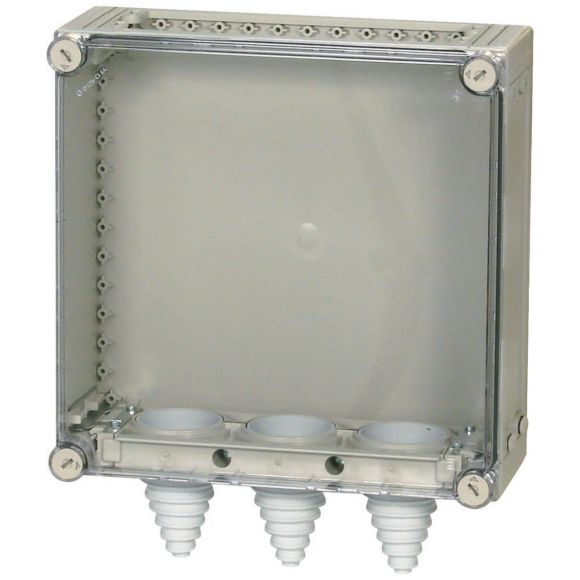

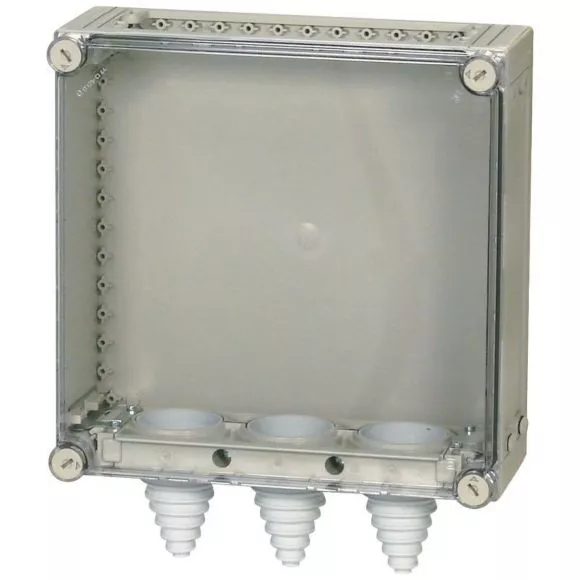

Pusta obudowa rozdzielacza z zamontowanymi wspornikami kablowymi, charakterystyka materiału Poliwęglan (PC), odporność na porażenia, stopień ochrony IP65, opatentowane zamknięcie pokrywy z wbudowanym wyrównaniem nadciśnienia, ściany boczne zamknięte, wybijana, ściany otwarte na górze lub na dole, przewody wkładane od przodu przez dzielone zaciski kablowe, plombowane zamknięcia pokrywy, RAL 7032, piaskowa (skrzynia dolna), przezroczysta, bezbarwna (pokrywa), głębokość montażu przy płyci montażowej=125mm, wersja pokrywy: przezroczysta, wersja części dolnej: na górze otwarta na dole króciec kablowy
Additional features:
Information | Value |
---|---|
Net weight: | 3,3 kg |
ETIM class: | Empty cabinet |
Mounting method: | Surface mounted |
Type of covering: | None |
Cover model: | Closed |
Type of door: | None |
Transparent cover/door: | yes |
With lock: | no |
Nominal current (In): | 1600 A |
Height: | 375 mm |
Width: | 375 mm |
Depth: | 150 mm |
Built-in depth: | 125 mm |
Inner depth: | 125 mm |
Material plate thickness cabinet: | 6 mm |
Material plate thickness door/cover: | 6 mm |
Colour: | Grey |
RAL-number: | 7035 |
Number of modules: | 1 |
Number of rows: | 0 |
Width in number of modular spacings: | 15 |
Number of openings for flange plates: | 4 |
Extension possible: | yes |
Number of conduit inlets: | 100 |
Housing material: | Plastic |
Surface protection: | Other |
With mounting plate: | no |
Suitable for outdoor use: | yes |
Suitable for lightning protection: | yes |
Degree of protection (IP): | Other |
Degree of protection (NEMA): | Other |
Protection class: | II |
Impact strength: | Other |
Circuit integrity: | Other |
Cover with overpressure release: | yes |
