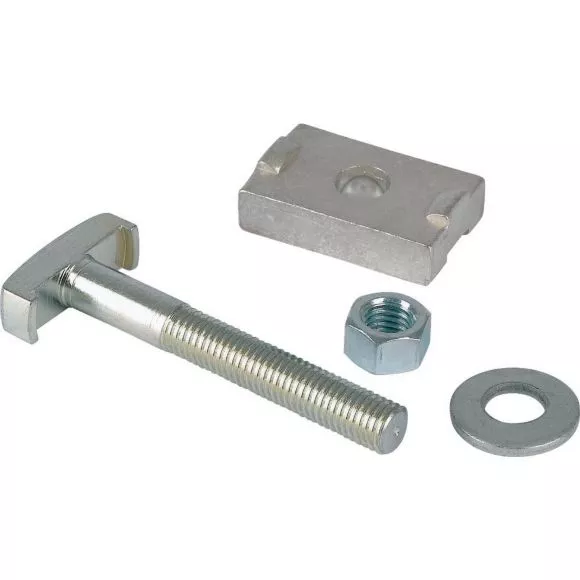

K30X10L Zaciski szyn zbiorczych do szyn CU
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 081977 |
| GTIN(EAN) | 4015080819776 |
| Price unit | piece |
| Catalog price | 334,81 zł (272,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zaciski do szyn zbiorczych, do obudowy szyn zbiorczych Cl, przyłącze przewodu taśmowego i szyn miedzianych do głównej szyny zbiorczej CI, zastosowanie do szyn zbiorczych 2x (30x10), przekrój przyłącza przewodu taśmowego=2x50x12, do przewodu głównego L1, L2, L3
Additional features:
| Information | Value |
|---|---|
| Net weight: | 100 g |
| ETIM class: | Busbar terminal |
| Busbar thickness: | 10 - 10 mm |
| Busbar width: | 30 - 60 mm |
| Suitable for: | Flat rail |
| Width clamp: | 17 mm |
| Max. conductor cross section: | 1000 mm² |
| Max. rated operation current Ie: | 1600 A |
| Suitable for round conductor connection: | no |
| Suitable for sector conductor connection: | no |
| Suitable for strip conductor connection: | yes |
