AK16 Zacisk obwodów głównych ; max.16mm2
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 079336 |
GTIN(EAN) | 4015080793366 |
Price unit | piece |
Catalog price | 10,21 zł (8,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zacisk uzupełniający do L-KL-R, także do Cu10x3, re, rm 1.5 do 16mm² lub rf 0.75 do 16mm²
Additional features:
Information | Value |
---|---|
Net weight: | 9 g |
ETIM class: | Busbar terminal |
Suitable for: | Other |
Max. conductor cross section: | 16 mm² |

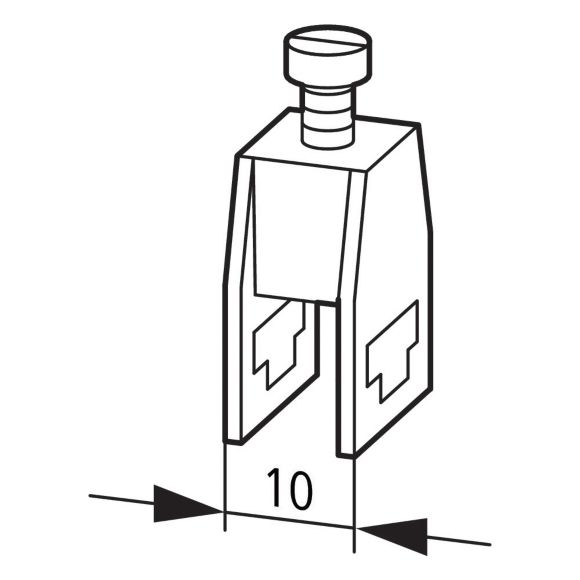

Width clamp: | 10 mm |
Busbar width: | 10 - 10 mm |
Busbar thickness: | 3 - 3 mm |
Suitable for strip conductor connection: | no |
Suitable for round conductor connection: | yes |
Suitable for sector conductor connection: | no |
Max. rated operation current Ie: | 63 A |
