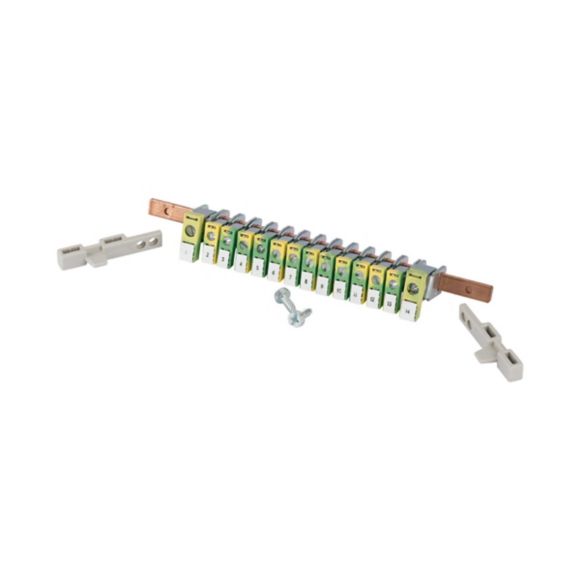

PEN43RS18 Element oszynowania
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 070108 |
| GTIN(EAN) | 4015080701088 |
| Price unit | piece |
| Catalog price | 245,02 zł (199,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Szyna PE z zaciskami do skrzynki bezpieczników szynowych RS18/I43, 2x 2.5-35 i 12x 1.5-16mm²
Additional features:
| Information | Value |
|---|---|
| Net weight: | 272 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 1 |
| Nominal current: | 63 A |
| Mounting method: | Screw |
| Number of inputs: | 1 |
| Number of outputs: | 13 |
| Suitable for solid conductors: | no |
| Suitable for stranded conductors: | yes |
| Suitable for fine strand conductors: | no |
| Suitable for fine strand conductors without cable end sleeve: | no |
| Suitable for extra fine-strand conductors: | no |
| Suitable for extra fine-strand conductors without cable end sleeve: | no |
| Conductor cross section, input: | 2.5 - 35 mm² |
| Conductor cross section, output: | 1.5 - 16 mm² |
| Conductor cross section, input AWG: | 14 - 14 mm² |
| Conductor cross section, output AWG: | 16 - 16 mm² |
| Contact safe: | yes |
| Height: | 50 mm |
| Width: | 375 mm |
| Depth: | 50 mm |
| Connection type: | Screwing |
