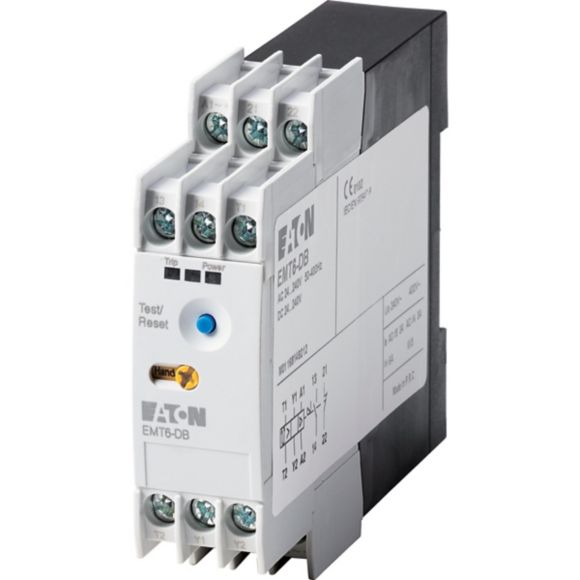

EMT6-DB(230V) Termisitorowe zabezpieczenie maszyn
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 066401 |
| GTIN(EAN) | 4015080664017 |
| Price unit | piece |
| Catalog price | 1 258,29 zł (1 023,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Termistorowe zabezpieczenie maszyn, wskaźnik diodowy sieci i błędu, pomiarowe napięcie zasilania sterującego 230V 50-60Hz, z przełączaniem z/bez blokadą przed ponownym włączeniem, do kasowania ręcznego lub zdalnego, przycisk testowy, mocowanie na zaciski
Additional features:
| Information | Value |
|---|---|
| Net weight: | 156 g |
| Country of origin | Chiny |
| ETIM class: | Temperature monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Number of measuring circuits: | 1 |
| Error registration possible: | no |
| External reset possible: | yes |
| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| Temperature measuring range: | 0 - 0 °C |
| Resistance measuring range: | 750 - 12000 Ω |
| Width: | 23 mm |
| Height: | 83 mm |
| Depth: | 103 mm |
| Voltage type (supply voltage): | AC |
| Supply voltage AC 50 Hz: | 230 - 230 V |
| Supply voltage AC 60 Hz: | 230 - 230 V |
| Connection type auxiliary circuit: | Screw connection |
| Voltage type (operating voltage): | AC |
| Operating voltage AC 50 Hz: | 230 - 230 V |
| Operating voltage AC 60 Hz: | 230 - 230 V |
| Rated switch current: | 6 A |
