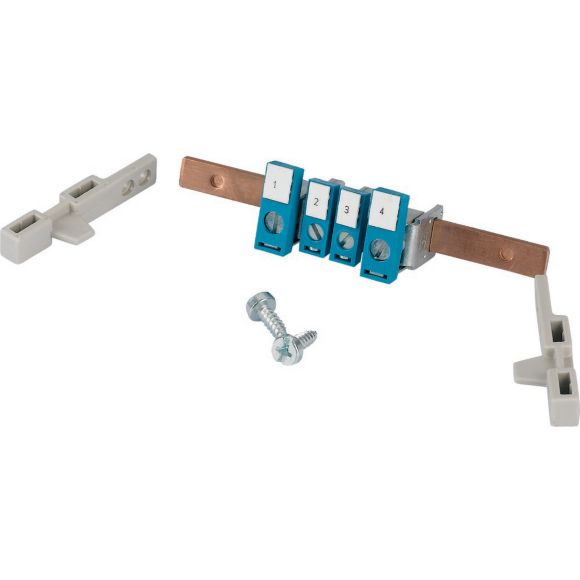

N23RS33 Szyna N do skrzynki bezpiecznikowej
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 060616 |
| GTIN(EAN) | 4015080606161 |
| Price unit | piece |
| Catalog price | 97,79 zł (79,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Szyna N z zaciskami do skrzynki bezpieczników szynowych RS33/I23, 2x 2.5-35 i 2x 1.5-16mm²
Additional features:
| Information | Value |
|---|---|
| Net weight: | 102 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 1 |
| Nominal current: | 63 A |
| Mounting method: | Screw |
| Number of inputs: | 1 |
| Number of outputs: | 3 |
| Suitable for solid conductors: | no |
| Suitable for stranded conductors: | yes |
| Suitable for fine strand conductors: | no |
| Suitable for fine strand conductors without cable end sleeve: | no |
| Suitable for extra fine-strand conductors: | no |
| Suitable for extra fine-strand conductors without cable end sleeve: | no |
| Conductor cross section, input: | 2.5 - 35 mm² |
| Conductor cross section, output: | 1.5 - 16 mm² |
| Conductor cross section, input AWG: | 14 - 14 mm² |
| Conductor cross section, output AWG: | 16 - 16 mm² |
| Contact safe: | yes |
| Height: | 30 mm |
| Width: | 200 mm |
| Depth: | 30 mm |
| Connection type: | Screwing |
