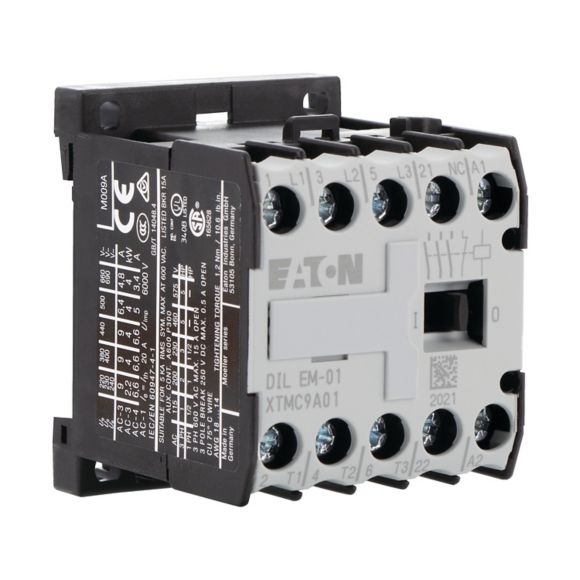

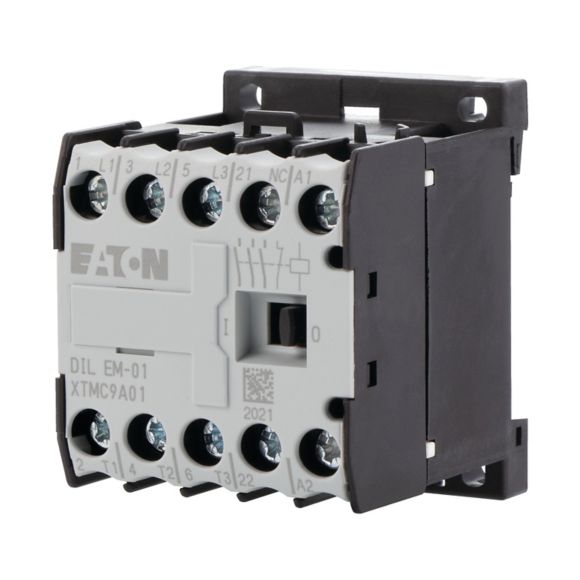

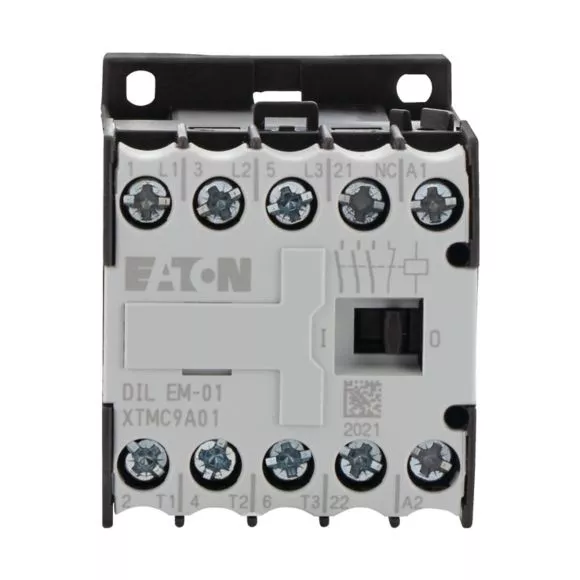

DILEM-01(400V50HZ,440V60HZ) mały stycznik AC-3/I=9A P=4kW/ 0Z 1R
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 051797 |
GTIN(EAN) | 4015080517979 |
Price unit | piece |
Catalog price | 297,66 zł (242,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik mocy, zgodnie z IEC/EN60947, 3-biegunowy, z połączeniami śrubowymi, możliwość rozbudowy o maksymalnie 4 łączników pomocniczych, z 1 łącznikami pomocniczymi jako zestyk wymuszony, mocowanie na śruby i zaciski, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, trwałość 7 mln cyklów łączenia mechanicznego, dostępne akcesoria: moduły łączników pomocniczych, układy ochronne, zwory punktu gwiazdowego, łączni równoległy, komplet okablowania, blokada mechaniczna
Additional features:
Information | Value |
---|---|
Net weight: | 170 g |
Country of origin | Niemcy |
ETIM class: | Power contactor, AC switching |
Width: | 45 mm |
Height: | 58 mm |
Depth: | 52 mm |
Modular version: | no |
Rated operation power at AC-3, 400 V: | 4 kW |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 1 |
Rated operation current Ie at AC-3, 400 V: | 9 A |
Rated operation current Ie at AC-1, 400 V: | 22 A |
Rated control supply voltage AC 50 Hz: | 400 - 400 V |
Rated control supply voltage AC 60 Hz: | 440 - 440 V |
Rated control supply voltage DC: | 0 - 0 V |
Type of electrical connection of main circuit: | Screw connection |
Operating voltage AC 50 Hz: | 24 - 690 V |
Operating voltage AC 60 Hz: | 24 - 690 V |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-4, 400 V: | 6.6 A |
Rated operation power at AC-4, 400 V: | 3 kW |
Rated operation power NEMA: | 3.7 kW |
