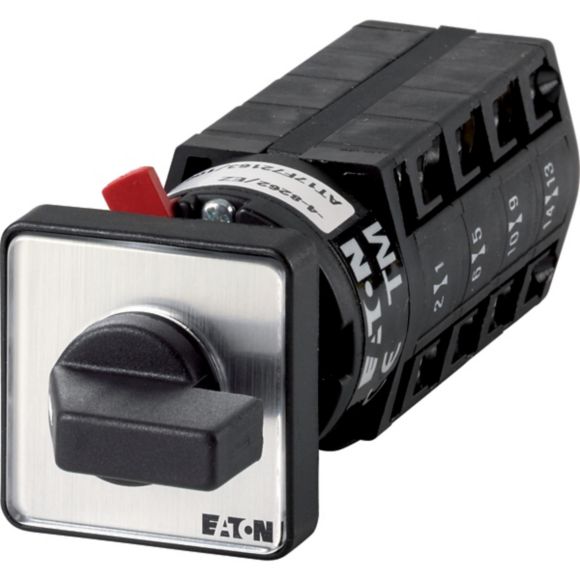

TM-4-8223/EZ Przełącznik zasilania, Styki: 8, 10 A, tabliczka: 1-2, 60 °, bez samopowrotu, montaż natablicowy 22,3 mm, pokrętło czarne bez możliwości blokady
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 046119 |
| GTIN(EAN) | 4015080461197 |
| Price unit | piece |
| Catalog price | 669,12 zł (544,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Łącznik krzywkowy mini wg IEC/EN60947-3, wielkość konstrukcyjna TM, 500 V/10A, klasa ochrony przód IP65, pokrętło z krótkim piórkiem, ogólne kształty konstrukcji: montaż montaż centralny. Kompaktowe łączniki krzywkowe mini TM stosuje się w przemyśle, pracach ręcznych i technice budowlanej. Do wyboru dostępnych jest wiele standardowych układów połączeń. Dodatkowo można również realizować układy połączeń na indywidualne zamówienie klienta.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 63 g |
| ETIM class: | Off-load switch |
| Model: | Reverser |
| Number of poles: | 4 |
| With zero (off) position: | no |
| With retraction in 0-position: | no |
| Rated permanent current Iu: | 10 A |
| Rated operation current Ie at AC-3, 400 V: | 0 A |
| Rated operation power at AC-3, 400 V: | 4.4 kW |
| Degree of protection (IP), front side: | IP65 |
| Degree of protection (NEMA), front side: | 12 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Suitable for floor mounting: | no |
| Suitable for front mounting: | yes |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | no |
| Complete device in housing: | no |
| Housing material: | Plastic |
| Type of control element: | Short thumb-grip |
| Type of electrical connection of main circuit: | Screw connection |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-11-19 15:00:12 |
| Files to download: | |
| External links: |
