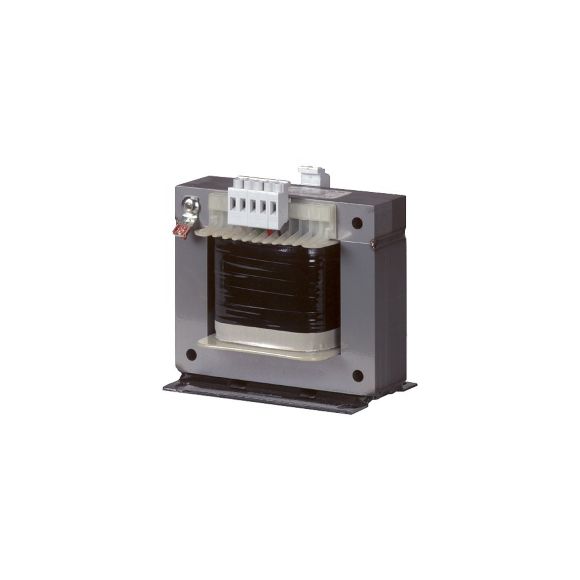

STI0,315(230/230) Transformator sterujący 315VA
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 040641 |
GTIN(EAN) | 4015080406419 |
Price unit | piece |
Catalog price | 1 666,65 zł (1 355,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Transformator wykonany zgodnie z normą IEC/EN 61558-2-2, VDE 0570 część 1 i część 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, zaczepy +- 5%, stopień ochrony IP00, 100% ED Zastosowanie jako transformator zabezpieczający lub rozłączający
Additional features:
Information | Value |
---|---|
Net weight: | 3,949 kg |
ETIM class: | One-phase control transformer |
Built as safety transformer: | yes |
Built as isolating transformer: | yes |
Built as energy saving transformer: | no |
Primary voltage 1: | 230 - 230 V |
Primary voltage 2: | 0 - 0 V |
Primary voltage 3: | 0 - 0 V |
Primary voltage 4: | 0 - 0 V |
Primary voltage 5: | 0 - 0 V |
Primary voltage 6: | 0 - 0 V |
Primary voltage 7: | 0 - 0 V |
Primary voltage 8: | 0 - 0 V |
Primary voltage 9: | 0 - 0 V |
Primary voltage 10: | 0 - 0 V |
Secondary voltage 1: | 230 - 230 V |
Secondary voltage 2: | 0 - 0 V |
Secondary voltage 3: | 0 - 0 V |
Secondary voltage 4: | 0 - 0 V |
Secondary voltage 5: | 0 - 0 V |
Secondary voltage 6: | 0 - 0 V |
Secondary voltage 7: | 0 - 0 V |
Secondary voltage 8: | 0 - 0 V |
Secondary voltage 9: | 0 - 0 V |
Secondary voltage 10: | 0 - 0 V |
Rated apparent power: | 315 VA |
Type of insulation material according to IEC 85: | B |
Short-circuit-proof: | no |
Relative short circuit voltage: | 5.5 % |
Width: | 121 mm |
Height: | 119 mm |
Depth: | 88 mm |
Degree of protection (IP): | IP00 |
Ring core: | no |
Suitable for mounting on PCB: | no |
Modular version: | no |
Conductor material: | Copper |
