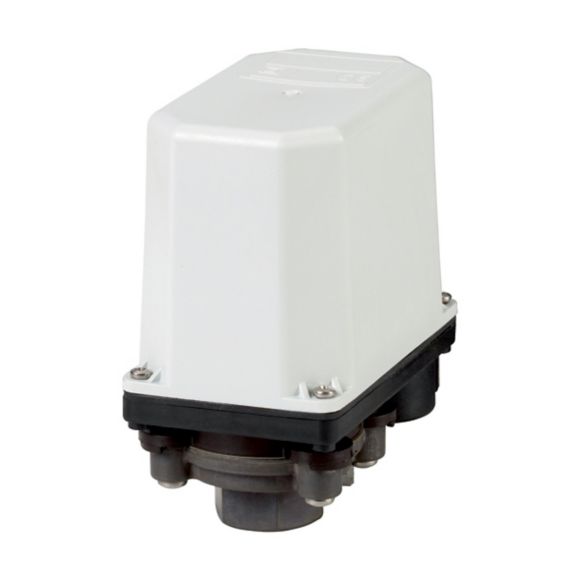

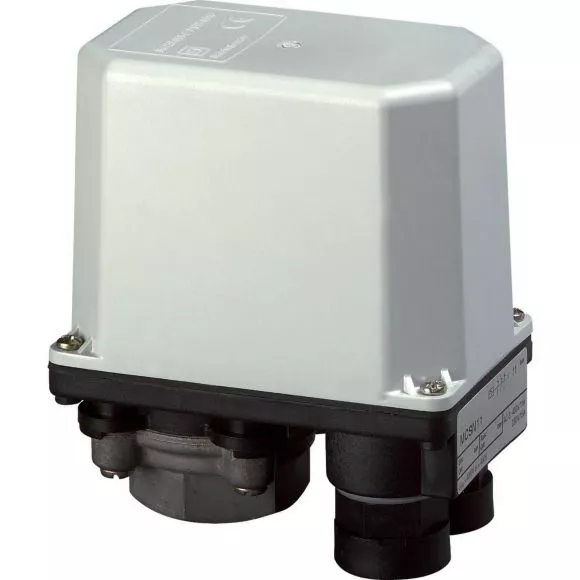

MCSN16 CZUJNIK CIŚNIENIA
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 038695 |
| GTIN(EAN) | 4015080386957 |
| Price unit | piece |
| Catalog price | 1 659,27 zł (1 349,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
IEC EN 60947-5-1, IP65, monitorowanie ciśnienia mediów płynnych i gazowych, np. sprężone powietrze, do łączenia obciążeń, ciśnienie wyłączania i włączania ustawiane oddzielnie
Additional features:
| Information | Value |
|---|---|
| Net weight: | 467 g |
| Country of origin | Węgry |
| ETIM class: | Pressure switch |
| Suitable as guard: | yes |
| Suitable as 2-point controller: | yes |
| Suitable as limiter: | no |
| Max. operating pressure: | 16000 hPa |
| Engaging pressure: | 0 - 13.1 bar |
| Initial setting: | 0 - 0 hPa |
| Switch off pressure: | 0 - 16 bar |
| End setting: | 0 - 0 hPa |
| Pressure-switching differential: | 0 bar |
| Max. test pressure: | 32 bar |
| Bursting pressure: | 90 bar |
| Medium temperature: | 25 - 80 °C |
| Connection: | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Thread size: | 1/2 inch |
| Rated voltage Ue at AC 50 Hz: | 0 - 400 V |
| Rated voltage Ue at AC 60 Hz: | 0 - 400 V |
| Rated voltage Ue at DC: | 0 - 250 V |
| Initial value measuring range pressure: | 0 Pa |
| End value measuring range pressure: | 0 Pa |
| Rated operation power at AC-3, 400 V: | 5.5 kW |
| Switching capacity at AC-3, 240 V: | 0 kA |
| Rated operation current Ie at AC-1, 400 V: | 0 A |
| Rated operation current Ie at AC-3, 400 V: | 11.5 A |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Type of electric connection: | Screw connection |
| Number of normally closed contacts as main contact: | 3 |
| Number of normally open contacts as main contact: | 0 |
| Adjustable current range: | 0 - 0 A |
| With hand operation: | no |
| With manual on/off switch: | no |
| Electronic version: | no |
| With display: | no |
| Explosion-proof: | no |
| Degree of protection (IP): | IP65 |
| Degree of protection (NEMA): | Other |
| Height: | 111 mm |
| Width: | 60 mm |
| Diameter: | 0 mm |
| Depth: | 96 mm |
