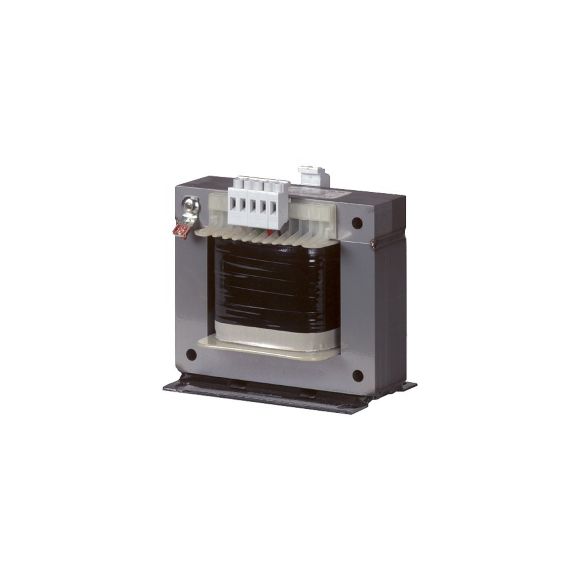

STI0,63(230/24) Transformator sterujący 630VA
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 036395 |
GTIN(EAN) | 4015080363958 |
Price unit | piece |
Catalog price | 2 350,53 zł (1 911,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Transformator wykonany zgodnie z normą IEC/EN 61558-2-2, VDE 0570 część 1 i część 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, zaczepy +- 5%, stopień ochrony IP00, 100% ED Zastosowanie jako transformator zabezpieczający lub rozłączający
Additional features:
Information | Value |
---|---|
Net weight: | 7,702 kg |
ETIM class: | One-phase control transformer |
Width: | 151 mm |
Height: | 157 mm |
Depth: | 121 mm |
Modular version: | no |
Conductor material: | Copper |
Degree of protection (IP): | IP00 |
Primary voltage 1: | 230 - 230 V |
Primary voltage 2: | 0 - 0 V |
Primary voltage 3: | 0 - 0 V |
Suitable for mounting on PCB: | no |
Ring core: | no |
Built as energy saving transformer: | no |
Built as safety transformer: | yes |
Built as isolating transformer: | yes |
Type of insulation material according to IEC 85: | B |
Short-circuit-proof: | no |
Primary voltage 10: | 0 - 0 V |
Primary voltage 4: | 0 - 0 V |
Primary voltage 5: | 0 - 0 V |
Primary voltage 6: | 0 - 0 V |
Primary voltage 7: | 0 - 0 V |
Primary voltage 8: | 0 - 0 V |
Primary voltage 9: | 0 - 0 V |
Relative short circuit voltage: | 4.1 % |
Secondary voltage 1: | 24 - 24 V |
Secondary voltage 10: | 0 - 0 V |
Secondary voltage 2: | 0 - 0 V |
Secondary voltage 3: | 0 - 0 V |
Secondary voltage 4: | 0 - 0 V |
Secondary voltage 5: | 0 - 0 V |
Secondary voltage 6: | 0 - 0 V |
Secondary voltage 7: | 0 - 0 V |
Secondary voltage 8: | 0 - 0 V |
Secondary voltage 9: | 0 - 0 V |
Rated apparent power: | 630 VA |
