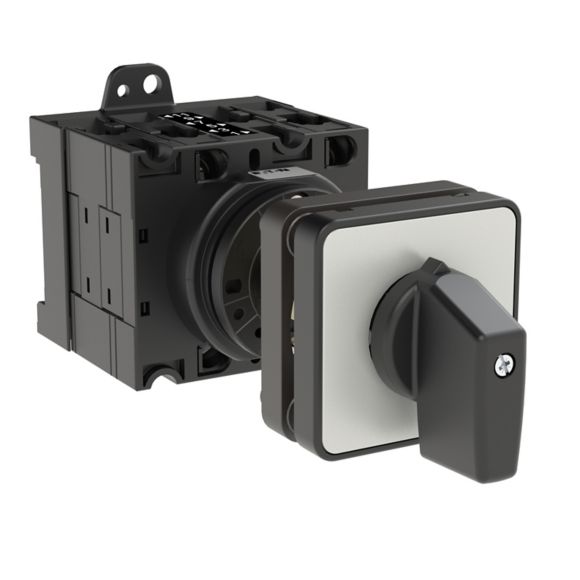

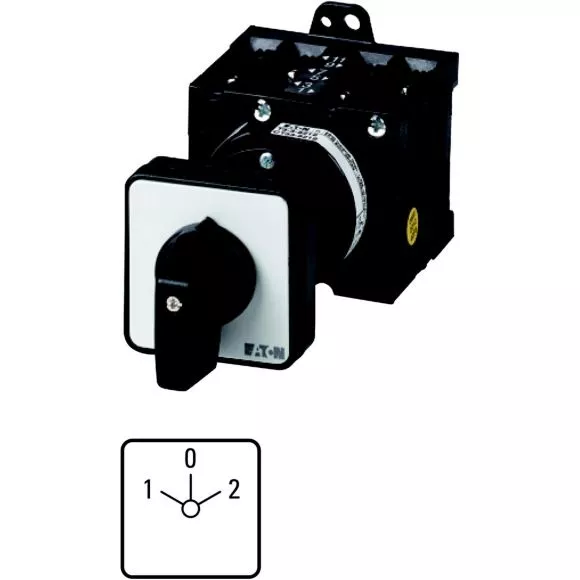

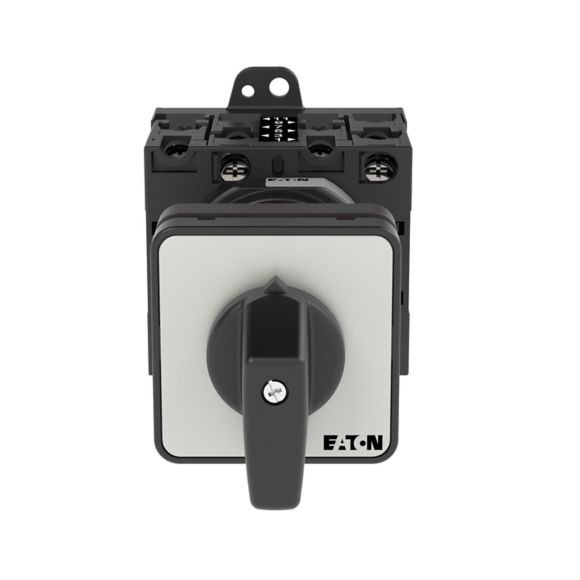

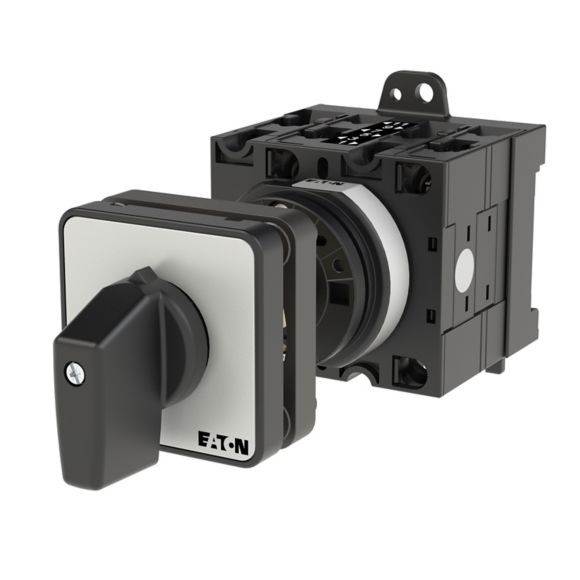

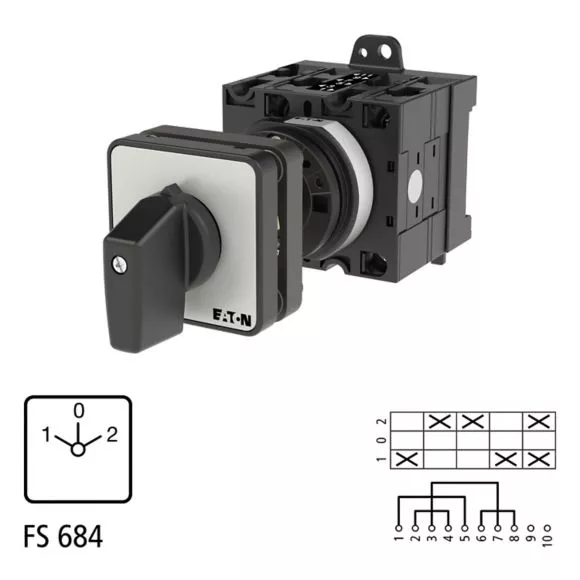

T3-3-8401/Z Przełącznik nawrotny, Styki: 5, 32 A, tabliczka: 1-0-2, 45 °, bez samopowrotu, montaż rozłączny, pokrętło czarne bez możliwości blokady
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 035739 |
| GTIN(EAN) | 4015080357391 |
| Price unit | piece |
| Catalog price | 679,33 zł (552,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Łącznik krzywkowy wg IEC/EN60947, wielkość konstrukcyjna T3, konstrukcja pośrednia, mocowanie przykręcane zatrzaskowe, napęd sprzęgowy drzwi i pokrywy, tabliczka czołowa 48X48, klasa ochrony na przedzie IP65 z czarnym pokrętłem, pomiarowy prąd stały Iu 32A, znamionowe napięcie pracy Ue 690V, dostępne akcesoria zgodnie z danymi katalogu łączników krzywkowych T
Additional features:
| Information | Value |
|---|---|
| Net weight: | 237 g |
| Country of origin | Wielka Brytania |
| ETIM class: | Off-load switch |
| Model: | Reversing switch |
| Number of poles: | 3 |
| With zero (off) position: | yes |
| With retraction in 0-position: | no |
| Rated permanent current Iu: | 32 A |
| Rated operation current Ie at AC-3, 400 V: | 23.7 A |
| Rated operation power at AC-3, 400 V: | 12 kW |
| Degree of protection (IP), front side: | IP65 |
| Degree of protection (NEMA), front side: | 12 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Suitable for floor mounting: | yes |
| Suitable for front mounting: | no |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | yes |
| Complete device in housing: | no |
| Housing material: | Plastic |
| Type of control element: | Short thumb-grip |
| Type of electrical connection of main circuit: | Screw connection |
