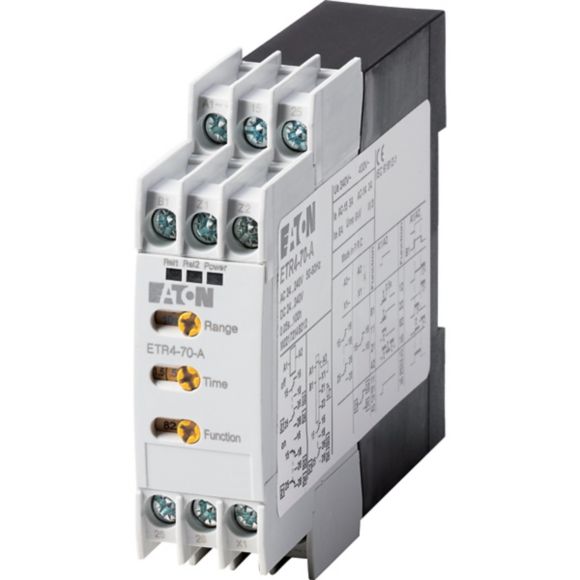

ETR4-70-A Przekaźnik wielofunkcyjny 2W, do potencj
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 031888 |
| GTIN(EAN) | 4015080318880 |
| Price unit | piece |
| Catalog price | 1 360,38 zł (1 106,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Elektroniczny przekaźnik czasowy zgodny z IEC/EN 61812-1, VDE 0435, szerokość 22.5mm, przedział czasu 0,05s-100h, żywotność mechaniczna 30 * 106, wyłącznik naprądowy DIN, dowolne położenie montażowe, 24-240VAC/DC, wielofunkcyjny, konstrukcja przemysłowa
Additional features:
| Information | Value |
|---|---|
| Net weight: | 141 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Function delay-on energization: | yes |
| Function delay on de-energization: | yes |
| Function floating contact on energization: | yes |
| Function floating contact on de-energization: | yes |
| Function star-delta: | no |
| Function pulse shaping: | yes |
| Function flashing, starting with pause, fixed time: | yes |
| Function flashing, starting with pulse, fixed time: | yes |
| Clock function, starting with pause, variable: | yes |
| Clock function, starting with pulse, variable: | yes |
| Remote operation possible: | yes |
| Suitable as remote control: | no |
| Pluggable on auxiliary contact block: | no |
| Rated control supply voltage AC 50 Hz: | 24 - 240 V |
| Rated control supply voltage AC 60 Hz: | 24 - 240 V |
| Rated control supply voltage DC: | 24 - 240 V |
| Voltage type for actuating: | AC/DC |
| Nominal current: | 3 A |
| Time range: | 0.05 - 360000 s |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 2 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, change-over contact: | 2 |
| Outputs, reversible delayed/undelayed: | yes |
| With semiconductor output: | no |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| Width: | 23 mm |
| Height: | 83 mm |
| Depth: | 103 mm |
