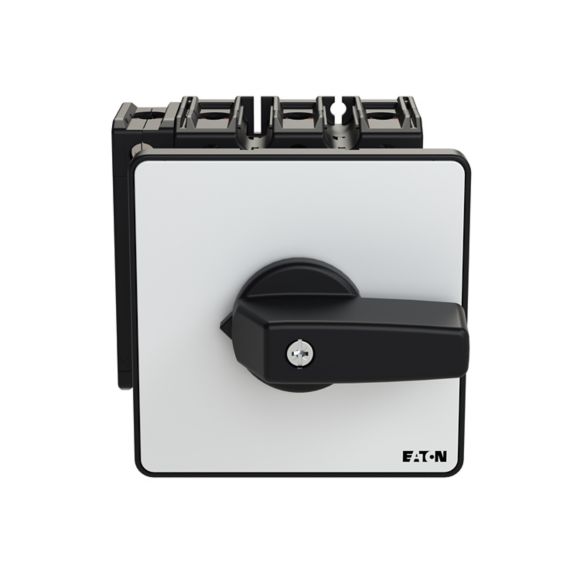

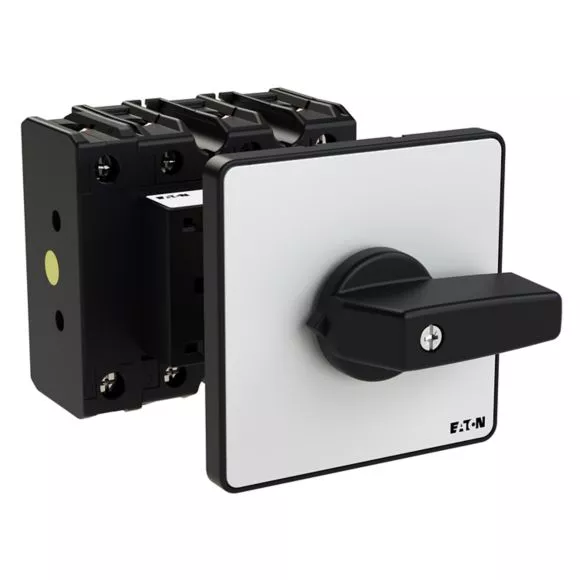

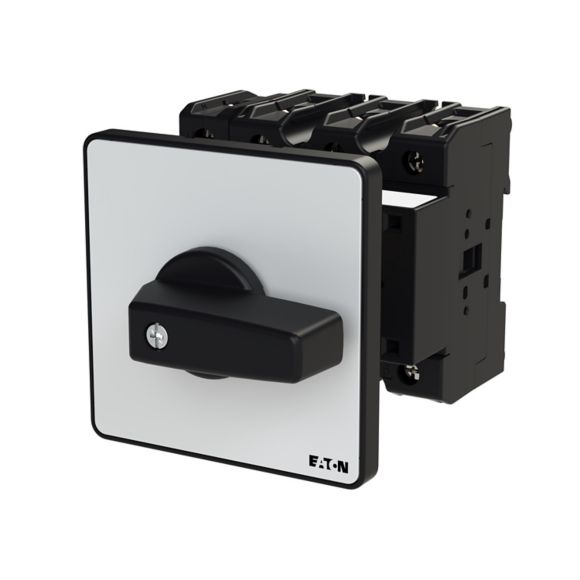

P3-63/Z/N Przełącznik Zał.-Wył., 3 bieg. + N, 63 A, montaż rozłączny, pokrętło czarne bez możliwości blokady
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 027013 |
| GTIN(EAN) | 4015080270133 |
| Price unit | piece |
| Catalog price | 923,36 zł (750,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłącznik główny / rozłącznik izolacyjny wł./wył. wg IEC/EN 60947-3, 690V/63A, klasa ochrony przód IP65, rękojeść czarna. Rozłączniki izolacyjne P3 mają niewielkie wymiary i są bardzo wytrzymałe. Napęd ręczny działa bezpośrednio na zestyki. Zestyki po wyłączeniu rozwierają się w sposób wymuszony. Konstrukcja ogólna: obudowa natynkowa z izolacją, montaż, montaż pośredni, montaż rozdzielacza IVS
Additional features:
| Information | Value |
|---|---|
| Net weight: | 430 g |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | no |
| Version as maintenance-/service switch: | no |
| Version as safety switch: | no |
| Version as emergency stop installation: | no |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 63 A |
| Rated permanent current at AC-23, 400 V: | 63 A |
| Rated permanent current at AC-21, 400 V: | 63 A |
| Rated operation power at AC-3, 400 V: | 30 kW |
| Rated short-time withstand current lcw: | 1.26 kA |
| Rated operation power at AC-23, 400 V: | 30 kW |
| Switching power at 400 V: | 30 kW |
| Conditioned rated short-circuit current Iq: | 100 kA |
| Number of poles: | 4 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | yes |
| Colour control element: | Black |
| Type of control element: | Door coupling rotary drive |
| Interlockable: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP), front side: | IP65 |
| Degree of protection (NEMA): | 12 |
