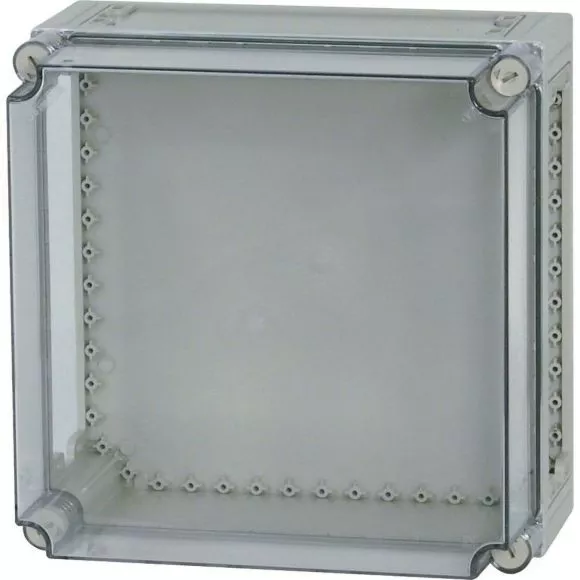

CI44-200 Obudowa rozdzielnicy otwarta od góry + o
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 021944 |
| GTIN(EAN) | 4015080219446 |
| Price unit | piece |
| Catalog price | 1 872,06 zł (1 522,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Obudowa bez wyposażenia, charakterystyka materiału Poliwęglan (PC), odporność na porażenia, stopień ochrony IP65, opatentowane zamknięcie pokrywy z wbudowanym wyrównaniem nadciśnienia, ściany boczne zamknięte, wybijana, ściany otwarte na górze i na dole, plombowane zamknięcia pokrywy, RAL 7032, piaskowa (skrzynia dolna), przezroczysta, bezbarwna (pokrywa), głębokość montażu przy płyci montażowej=200mm, wersja pokrywy: przezroczysta, wersja części dolnej: na górze i na dole otwarta
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,128 kg |
| ETIM class: | Empty cabinet |
| Mounting method: | Surface mounted |
| Type of covering: | Optional |
| Cover model: | Closed |
| Type of door: | None |
| Transparent cover/door: | yes |
| Nominal current (In): | 1600 A |
| Height: | 375 mm |
| Width: | 375 mm |
| Depth: | 225 mm |
| Built-in depth: | 200 mm |
| Inner depth: | 200 mm |
| Material plate thickness cabinet: | 6 mm |
| Material plate thickness door/cover: | 6 mm |
| Colour: | Grey |
| RAL-number: | 7035 |
| Number of modules: | 1 |
| Number of rows: | 0 |
| Width in number of modular spacings: | 15 |
| Number of openings for flange plates: | 4 |
| Extension possible: | yes |
| Number of conduit inlets: | 100 |
| Housing material: | Plastic |
| Surface protection: | Other |
| Suitable for outdoor use: | yes |
| Suitable for lightning protection: | yes |
| Degree of protection (IP): | Other |
| Degree of protection (NEMA): | Other |
| Protection class: | II |
| Impact strength: | Other |
| Circuit integrity: | Other |
| Cover with overpressure release: | yes |
