K20X15/40-A Zaciski szyn zbiorczych do CU 20x5(x10,
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 012783 |
| GTIN(EAN) | 4015080127833 |
| Price unit | piece |
| Catalog price | 75,15 zł (61,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

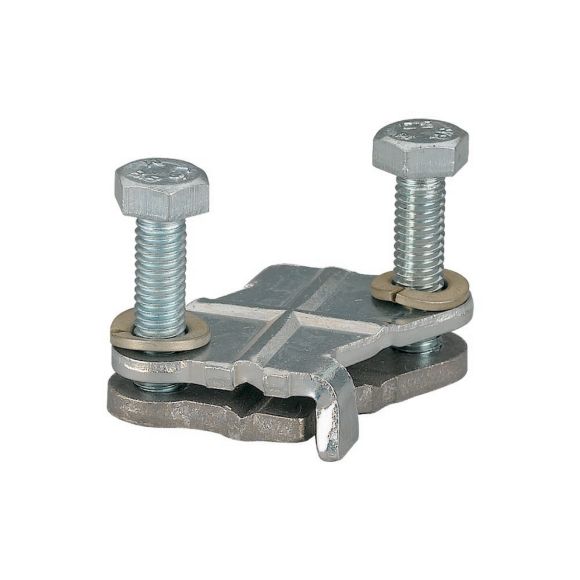

Zacisk na płaską szynę miedzianą, do obudów bezpiecznikowych CI i wkładów szyn zbiorczych SE-RS-I43, przekrój przyłącza przewodu taśmowego=3x9x0.8 lub 10x16x0.8, do szyn Cu 20x5 / 20x10 / 20x15
Additional features:
| Information | Value |
|---|---|
| Net weight: | 75 g |
| ETIM class: | Busbar terminal |
| Busbar thickness: | 5 - 10 mm |
| Busbar width: | 20 - 20 mm |
| Suitable for: | Flat rail |
| Width clamp: | 32 mm |
| Max. conductor cross section: | 124 mm² |
| Max. rated operation current Ie: | 400 A |
| Suitable for round conductor connection: | yes |
| Suitable for sector conductor connection: | no |
| Suitable for strip conductor connection: | yes |
