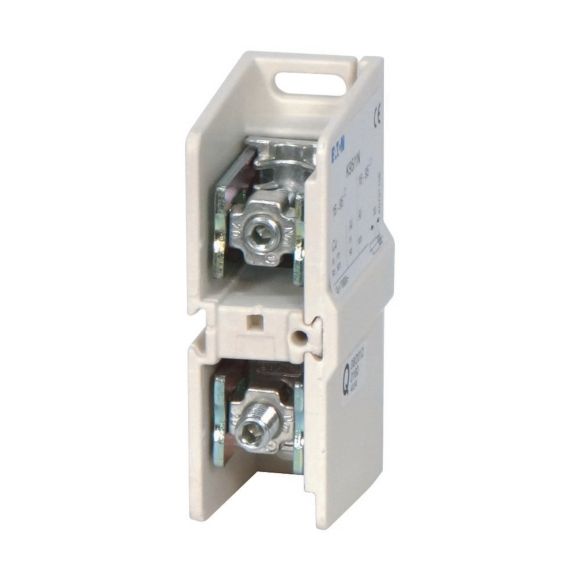

K95/1N Zacisk przewodów PE,PEN lub N 160A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 010773 |
GTIN(EAN) | 4015080107736 |
Price unit | piece |
Catalog price | 403,69 zł (328,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zaciski K, do AL i CU, jedna strona okrągła a druga płaska, znamionowy prąd pracy Ie=160 A, liczba styków=1, przekrój doprowadzeń: kabel okrągły miedziany wielożyłowy, kabel sektorowy wielożyłowy, kabel okrągły jednożyłowy, kabel sektorowy jednożyłowy lub aluminiowy kabel okrągły jednożyłowy, kabel sektorowy jednożyłowy=1x16-95mm². Aluminiowy kabel sektorowy jednożyłowy =1x35-70mm². Druga strona: taśma Cu 3x9x0.8 do 6x9x0.8 lub szyna Cu=18x4mm, wskazówki: Zestawy do przebudowy z przyłącza taśmowego na przyłącze kablowe są oferowane oddzielnie, pokrywy zacisków dostępne oddzielnie
Additional features:
Information | Value |
---|---|
Net weight: | 537 g |
ETIM class: | Main line branch terminal |
Number of poles: | 1 |
Nominal current: | 160 A |
Mounting method: | Screw |
Number of inputs: | 1 |
Number of outputs: | 1 |
Suitable for solid conductors: | no |
Suitable for stranded conductors: | yes |
Suitable for fine strand conductors: | no |
Suitable for fine strand conductors without cable end sleeve: | no |
Suitable for extra fine-strand conductors: | no |
Suitable for extra fine-strand conductors without cable end sleeve: | no |
Conductor cross section, input: | 16 - 95 mm² |
Conductor cross section, output: | 10 - 95 mm² |
Conductor cross section, input AWG: | 0 - 0 mm² |
Conductor cross section, output AWG: | 8 - 8 mm² |
Contact safe: | yes |
Height: | 115 mm |
Width: | 37 mm |
Depth: | 100 mm |
Connection type: | Screwing |
